Anritsu MA9301A
| Attribute | Value |
|---|---|
| Wavelength Range | 800 nm to 1650 nm |
| Power Measurement Range | -80 dBm to +10 dBm |
| Measurement Uncertainty | ±0.35 dB |
| Connector Type | Universal Adapter (FC, SC, ST, LC compatible) |
| Display | LCD with backlight |
| Power Supply | AA batteries (4 x AA) or AC adapter |
| Battery Life | Approximately 10 hours continuous operation |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | Approximately 195 mm x 90 mm x 45 mm |
| Weight | Approximately 450 g (including batteries) |
| Model | MA9301A |
|---|

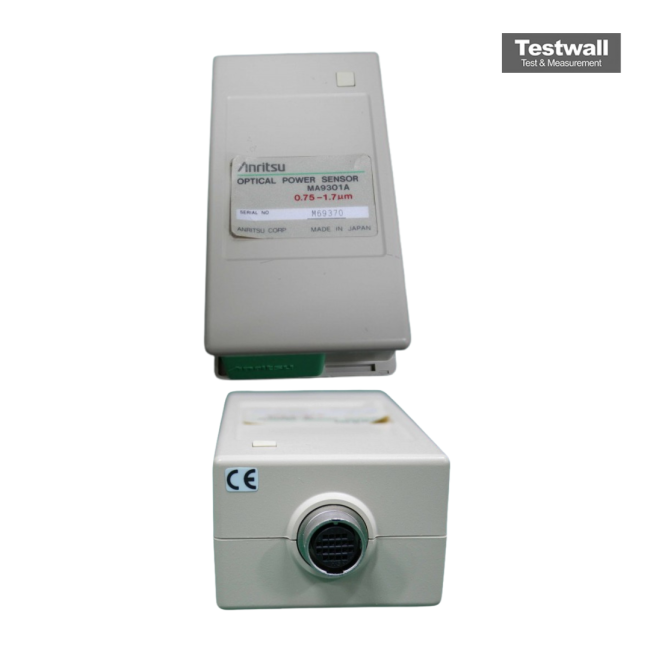

The Anritsu MA9301A is a precision optical power sensor covering wavelengths from 750 nm to 1700 nm with a dynamic measurement range between –90 dBm and 0 dBm. Equipped with an FC connector, it ensures reliable coupling to optical fibers and provides ±5% accuracy at typical test points such as –23 dBm at 1300 nm. Designed with a low-noise architecture, it supports telecom, CATV, and datacom validation with laboratory-grade repeatability.
Compatible with the Anritsu ML910 series optical power meters, the Anritsu MA9301A offers high sensitivity for commissioning, troubleshooting, and lab-based optical fiber testing across multiple industries.
Testwall can supply the used Anritsu MA9301A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA9301A.
