Anritsu MA9802A
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1640 nm |
| Optical Output Power | Up to +7 dBm |
| Power Accuracy | ±0.5 dB |
| Wavelength Accuracy | ±0.01 nm |
| Modulation Frequency | 270 Hz, 1 kHz, 2 kHz internal modulation |
| Light Source Type | Broadband Light Source (BLS) |
| Connector Interface | FC/PC (standard), SC/PC, ST/PC optional |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W × H × D) | 213 mm × 88 mm × 325 mm |
| Model | MA9802A |
|---|

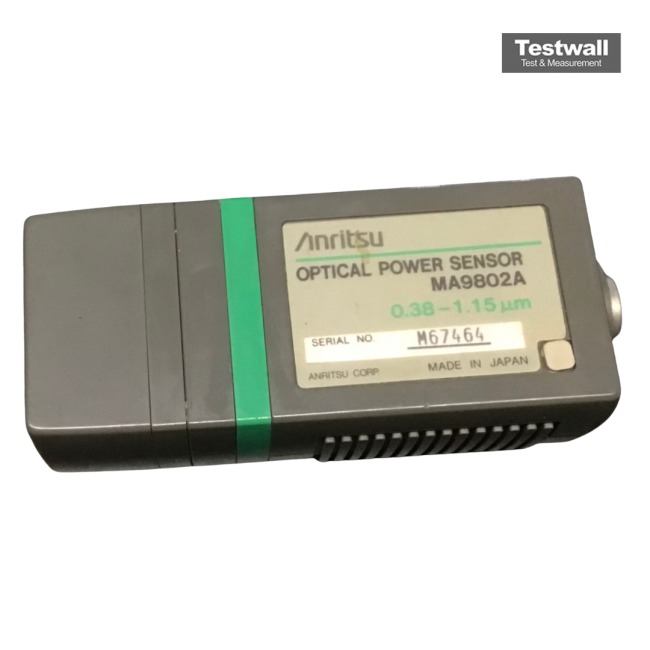

The Anritsu MA9802A is a silicon photodiode optical power sensor designed for precision optical measurements across 0.38 to 1.15 µm, delivering a wide dynamic range from –65 dBm to +20 dBm. With a telecom-compatible spectral range of 380–1150 nm and a direct photodiode input, it ensures minimal insertion loss while providing reliable readings. The plug-in format makes it fully compatible with Anritsu optical power meters for seamless integration.
Its silicon sensor is optimized for visible to near‑infrared measurement, making it suitable for telecommunications, research, and general optical testing applications requiring accuracy and repeatability.
Testwall can supply the used Anritsu MA9802A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA9802A.
