Anritsu MD1230A
| Attribute | Value |
|---|---|
| Function | BER (Bit Error Rate) Test System |
| Data Rate | Up to 12.5 Gbps |
| Interface | SONET/SDH, Ethernet, Fibre Channel |
| Pattern Generator Output | Programmable PRBS and user-defined patterns |
| Error Detection | Bit error rate measurement with error insertion capability |
| Jitter Tolerance Testing | Sinusoidal and random jitter injection supported |
| Clock Recovery | Built-in clock recovery unit for synchronous testing |
| Connectivity | GPIB and RS-232 remote control interfaces |
| Display | Built-in LCD display with intuitive user interface |
| Power Supply | AC 100–240 V, 50/60 Hz universal input |
| Model | MD1230A |
|---|

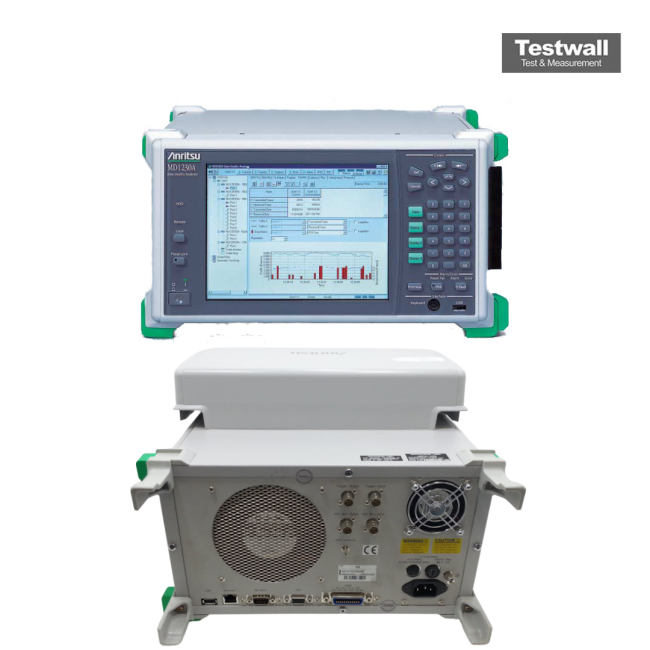

The Anritsu MD1230A is a versatile general-purpose measuring instrument designed for IP networks. It integrates router performance testing with network monitoring, and features an 8.4" TFT LCD screen running on Windows 98 for a user-friendly interface. Supporting multiple interfaces such as 100BASE-TX, Gigabit Ethernet, 10 Gigabit Ethernet, OC-3/12 POS, 2.5G POS/EOS, and 10G POS, it is a powerful and portable solution for network analysis.
Its advanced monitoring functions and modular support for various 10 Gigabit interfaces through XENPAK transceivers make it ideal for troubleshooting and performance testing in the field. Optional decode and expert analysis modules expand functionality with automated failure detection and in-depth protocol analysis.
Testwall can supply the used Anritsu MD1230A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MD1230A.
