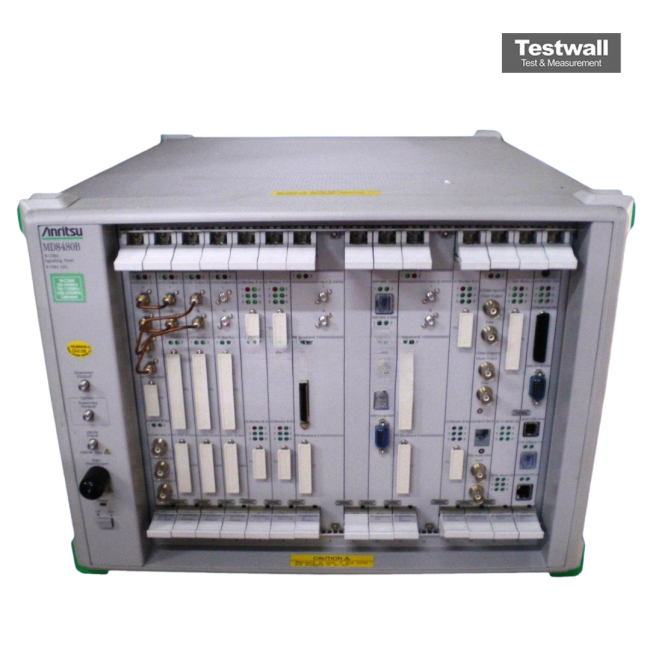

Anritsu MD8480B
| Attribute | Value |
|---|---|
| Supported Standards | W-CDMA/HSPA, GSM/GPRS/EDGE, CDMA2000, 1xEV-DO, TD-SCDMA |
| Function | Signaling Tester / Base Station Simulator for mobile device protocol testing |
| Number of Channels | Up to 4 independent cells simultaneously supported |
| Frequency Range | 700 MHz to 2.7 GHz (band-dependent per supported standard) |
| Interface | GPIB, LAN (Ethernet), USB for remote control and data transfer |
| Output Power Range | -120 dBm to -20 dBm (adjustable RF output level) |
| Operating Temperature | 0°C to +40°C |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Dimensions (W x H x D) | Approximately 426 mm x 177 mm x 550 mm |
| Weight | Approximately 30 kg |
| Model | MD8480B |
|---|
The Anritsu MD8480B is a powerful base station simulator designed for W-CDMA mobile station testing, fully compliant with 3GPP specifications. It supports advanced modulation and demodulation, protocol sequence tests such as registration, origination, termination, handover (optional), and disconnection. The instrument enables voice and packet communication tests and can even evaluate communication between two mobile stations when paired with a second MD8480B. Additionally, GSM/GPRS options allow seamless handover testing between W-CDMA and GSM/GPRS networks.
Its flexible parameter settings and sequence control make it ideal for both research and application software development, offering unmatched precision and versatility for 3G mobile technologies.
Testwall can supply the used Anritsu MD8480B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MD8480B.
