Anritsu ME3620A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, reflection coefficient |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Number of Test Ports | 2 ports |
| Connector Type | N-type (50 Ω) |
| Display | 10.4-inch color LCD touchscreen |
| Interface | USB, LAN (Ethernet), GPIB |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C (32°F to 122°F) |
| Model | ME3620A |
|---|

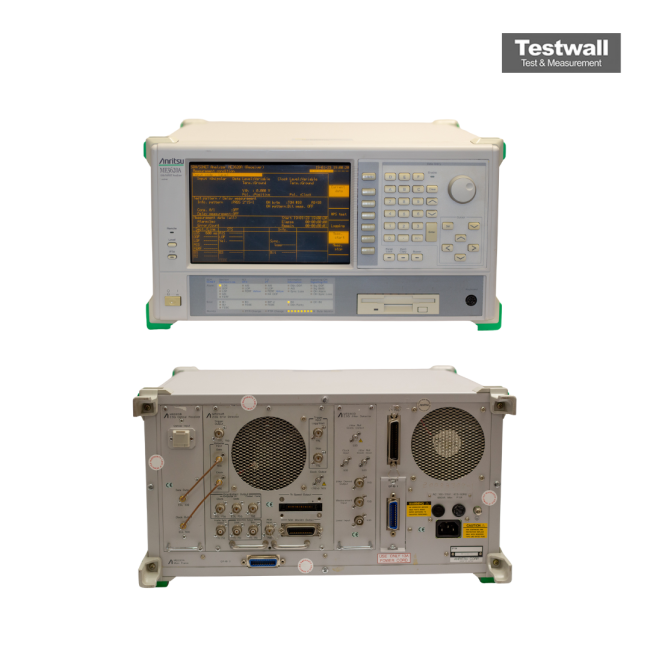

The Anritsu ME3620A is an advanced SDH/SONET transmission analyzer supporting NNI access with data rates from 52 Mb/s to 2488 Mb/s. It features modular design with interchangeable modules including optical senders (1.31 µm, 1.55 µm), receivers, jitter units, clock generators, and pattern generators, enabling flexible test setups.
Its fast firmware uploads, quick-start boot, and upgrade path from 622 Mb/s to 2.5 Gb/s make it a scalable solution for SDH/SONET testing environments, supporting B-ISDN and ATM traffic verification.
Testwall can supply the used Anritsu ME3620A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu ME3620A.
