Anritsu MG3633A
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 2700 MHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.01 Hz |
| SSB Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Output Impedance | 50 Ohms |
| Frequency Accuracy | ±1 ppm (internal reference) |
| Harmonic Distortion | -30 dBc or less |
| Power Supply | 100/120/220/240 VAC, 48-66 Hz |
| Interface | GPIB (IEEE 488.2) |
Anritsu MG3633A Options:
- MG3633A - 01 - Reference oscillator
- MG3633A - 02 - Reference oscillator
- MG3633A - 03 - Reference oscillator
- MG3633A - 04 - Rear RF output: SMA connector (however, replaces front-panel RF connector)
| Model | MG3633A |
|---|

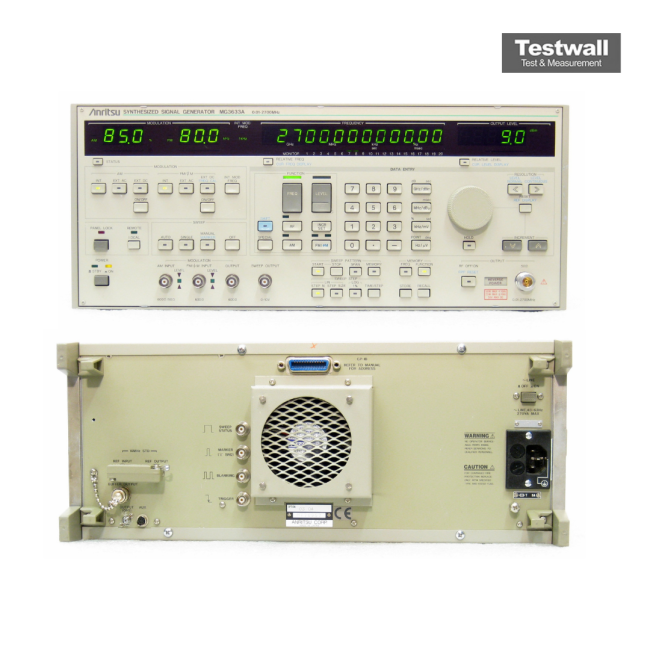

The Anritsu MG3633A Synthesized Signal Generator offers a frequency range from 10 kHz to 2700 MHz with outstanding frequency resolution, fast switching speed, and excellent signal purity. It delivers high output levels up to +17 dBm and supports amplitude, frequency, and phase modulation. Its sweep functions for carrier frequency, output level, and modulation frequency make it highly versatile for advanced testing applications.
With a frequency memory storing up to 1000 carrier frequencies and function memory for 100 panel settings, the Anritsu MG3633A ensures flexibility and efficiency in operation. Its low noise, high accuracy, and quasi-microwave output enable precise signal generation for demanding environments.
Testwall can supply the used Anritsu MG3633A Synthesized Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3633A Synthesized Signal Generator.
