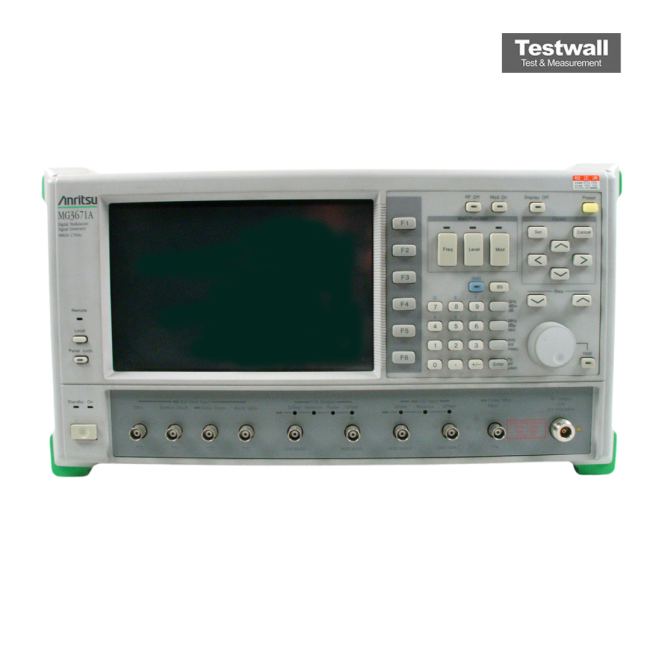

Anritsu MG3671A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.01 Hz |
| SSB Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Frequency Switching Speed | Less than 10 ms |
| Output Impedance | 50 Ohms |
| Harmonic Distortion | -30 dBc or less |
| Interface | GPIB (IEEE 488.2) |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
| Model | MG3671A |
|---|
The Anritsu MG3671A is a digital modulation signal generator with a high-performance quadrature modulator, covering a frequency range of 300 kHz to 2.75 GHz. It supports modulation formats including pulse and I/Q, with an output power range from -143 dBm to +13 dBm. Designed for digital mobile communications, it provides accurate and stable signals essential for developing and testing communication equipment.
Its capabilities include testing receiver sensitivity, excess input, IF stage performance, and device quality evaluation. With a CMOS-level mode for I/Q signal input, it supports CDMA spread spectrum applications.
Testwall can supply the used Anritsu MG3671A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3671A.
