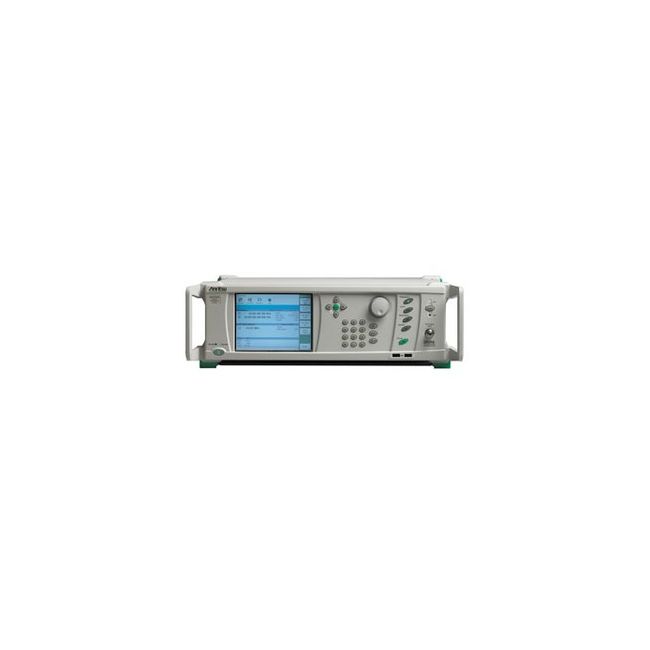

Anritsu MG3691A
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 10 GHz |
| Output Power Range | -110 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise (at 10 GHz, 10 kHz offset) | -100 dBc/Hz |
| Harmonic Suppression | -30 dBc typical |
| FM Deviation Range | Up to 10 MHz |
| AM Depth Range | 0% to 99% |
| Internal Reference Frequency | 10 MHz |
| RF Connector Type | Type-N (female) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Model | MG3691A |
|---|

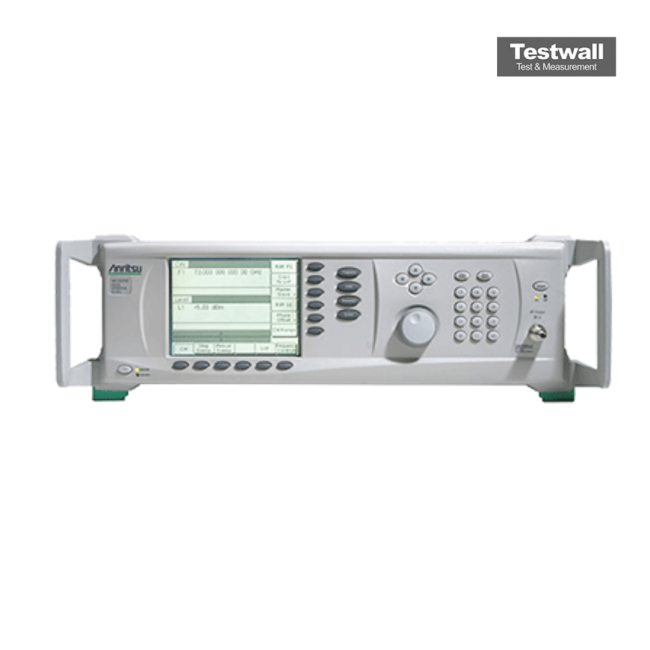

The Anritsu MG3691A Signal Generator delivers broadband performance from 0.1 Hz to 65 GHz, extendable to 110 GHz with external multipliers. It offers exceptional phase noise, high output power up to 17 dBm, and versatile modulation options including AM, FM, Phase, and Pulse. The instrument supports both digital and analog sweeps, with fine resolution of 0.01 Hz and wide attenuation ranges up to 120 dB, making it ideal for demanding RF and microwave applications.
With fast switching speeds under 40 ms, IF up-conversion for IQ modulation, and compact 3U rack design, the MG3691A is suited for ATE systems and laboratory environments. Its flexible configuration ensures future-proof adaptability.
Testwall can supply the used Anritsu MG3691A Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3691A Signal Generator.
