Anritsu MG3692C
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 20 GHz |
| Output Power Range | -110 dBm to +30 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise (10 GHz, 10 kHz offset) | -116 dBc/Hz |
| Spectral Purity (Harmonics) | -60 dBc typical |
| Switching Speed | less than 5 ms typical |
| Frequency Accuracy | ±1 ppm (internal reference) |
| Output Connector | Type-N (f), 50 Ohm |
| Power Accuracy | ±1 dB |
| Interface/Connectivity | GPIB, USB, Ethernet (LAN) |
| Model | MG3692C |
|---|

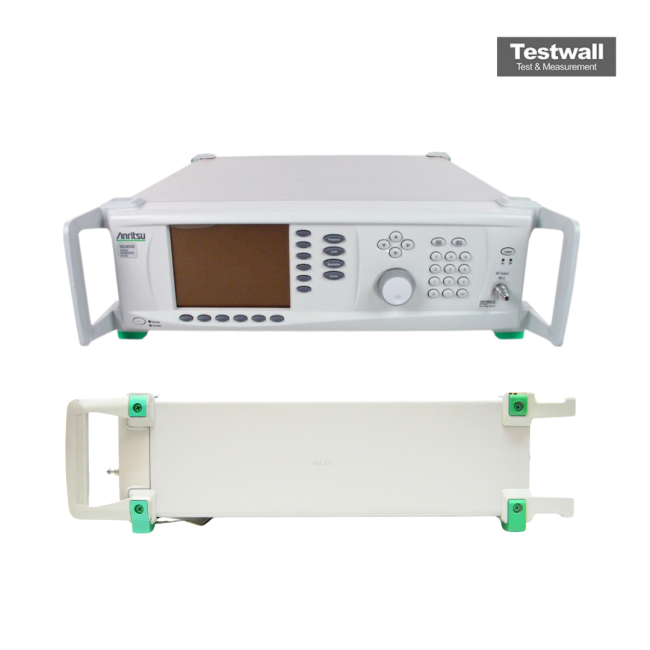

The Anritsu MG3692C broadband signal generator spans 0.1 Hz to 20 GHz natively and up to 325 GHz with multipliers. It delivers best-in-class SSB phase noise, fast switching, high output power, and full analog/pulse modulation. Options include Standard, Ultra-low (Opt. 3), and Premium (Opt. 3X) phase noise levels.
Ideal for RF and microwave signal simulations, it supports IQ modulation with IF input for up-conversion of IQ-modulated signals. It also maintains full backward compatibility with older MG3690 and 68C/69B series.
Testwall can supply the used Anritsu MG3692C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3692C.
