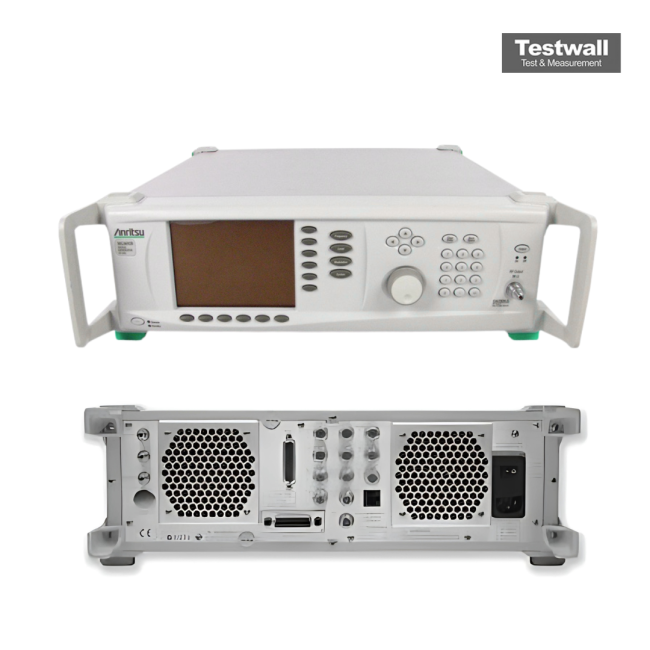

Anritsu MG3694B
2GHz-40GHz Signal Generator
2 MHz to 40 GHz Frequency Range
-20 dBm to +20 dBm (typical) Output Power Range
0.001 Hz Frequency Resolution
-116 dBc/Hz at 10 kHz offset (at 10 GHz) Phase Noise
Low phase noise design with internal reference oscillator Spectral Purity
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 40 GHz |
| Output Power Range | -20 dBm to +20 dBm (typical) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity | Low phase noise design with internal reference oscillator |
| Modulation Capabilities | AM, FM, Phase Modulation, and Pulse Modulation |
| Frequency Switching Speed | Less than 5 ms (typical) |
| Output Connector | Type-N (female) or 2.92 mm (K) connector |
| Interface/Remote Control | GPIB (IEEE-488), RS-232, and optional Ethernet connectivity |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 350 W |
Anritsu MG3694B Options:
- MG3694B - 1A - Rack Mount with slides – Rack mount kit containing a set of track slides (90 degree tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3694B - 1B - Rack Mount without slides – Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3694B - 2A - Mechanical Step Attenuator – Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694B - 2B - Mechanical Step Attenuator – Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694B - 2C - Mechanical Step Attenuator – Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694B - 3 - Ultra Low Phase Noise, main band – Adds new modules to significantly reduce SSB phase noise.
- MG3694B - 4 - 10 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version – Uses a digital down converter to significantly reduce SSB phase noise.
- MG3694B - 5 - 10 MHz to 2 GHz RF coverage – Uses an analog down converter.
- MG3694B - 6 - Analog Sweep Capability – (limited to ≥500 MHz when used with Option 4).
- MG3694B - 7 - IF Up-Conversion – Adds an internal 40 GHz mixer for up-converting an IF signal.
- MG3694B - 8 - Power Monitor – Adds internal power measurement capability. (Not available with Option 9.)
- MG3694B - 9K - Rear Panel Output – Moves the RF output connector to the rear panel.
- MG3694B - 9V - Rear Panel Output – Moves the RF output connector to the rear panel.
- MG3694B - 10 - User-Defined Modulation Waveform Software – External software package provides the ability to download user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB.
- MG3694B - 12 - Frequency and Phase Modulation – External, via a rear panel BNC connector. For internal modulation capability, requires additionally LF Generator, Option 27.
- MG3694B - 14 - Amplitude Modulation – External, via a rear panel BNC connector. For internal modulation capability, requires additionally LF Generator, Option 27.
- MG3694B - 15A - High Power – Adds high-power RF components to the instrument to increase its output power level.
- MG3694B - 15B - High Power – Adds high-power RF components to the instrument to increase its output power level.
- MG3694B - 15C - High Power – Adds high-power RF components to the instrument to increase its output power level.
- MG3694B - 16 - High Stability Time Base – Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3694B - 17 - Delete Front Panel – Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed. (Only available with Options 1A or 1B)
- MG3694B - 18 - mmW Bias Output – Adds a rear panel BNC Twinax connector required to bias the 63850 series millimeter wave source modules, sold separately. Includes DC bias cable.
- MG3694B - 22 - 0.1 Hz to 10 MHz Audio coverage – Uses a DDS for coverage down to approximately DC. Output power is derated by 2 dB. Frequency resolution below 10 MHz is 0.02 Hz. No modulation available in the 0.1 Hz to 10 MHz band.
- MG3694B - 26B - Pulse Modulation – External, via a rear panel BNC connector. For internal modulation capability, requires additionally Pulse Generator, Option 27.
- MG3694B - 27 - Internal LF and Pulse Generators – Provides modulation waveforms for internal AM, FM, ΦM, and Pulse. (Not available without Option 12, 14, or 26.)
- MG3694B - 28B - Analog Modulation Suite – Bundles Options 12, 14, 26B and 27, offering internal and external AM, FM, ΦM, and Pulse Modulation.
- MG3694B - 30 - Low Phase Noise. (Not available with Option 3.)
- MG3694B - 98 - Standard calibration to ISO 17025 and ANSI/NCSL Z540.
- MG3694B - 99 - Premium calibration to ISO 17025 and ANSI/NCSL Z540. Test report and uncertainty data included.
| Model | MG3694B |
|---|
The Anritsu MG3694B RF/Microwave Signal Generator covers an expansive 2–40 GHz frequency range (extendable to 10 MHz with optional modules), with ultra-fine 0.01 Hz resolution and time-base accuracy matching both internal and external 10 MHz references. It delivers outstanding performance, boasting guaranteed +23 dBm output at 40 GHz, excellent spectral purity with –94 dBc/Hz phase noise at a 1 kHz offset, and rapid switching speeds (~5 ms per point), while offering external 10 MHz reference input/output and optional analog ramp sweep for even faster measurements.
Ideal for engineers in R&D, manufacturing, and depot repair, the Anritsu MG3694B enables precise testing of filters, amplifiers, and components through its leveled output power, spectral purity, and dependable reliability.
Testwall can supply the used Anritsu MG3694B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3694B.
