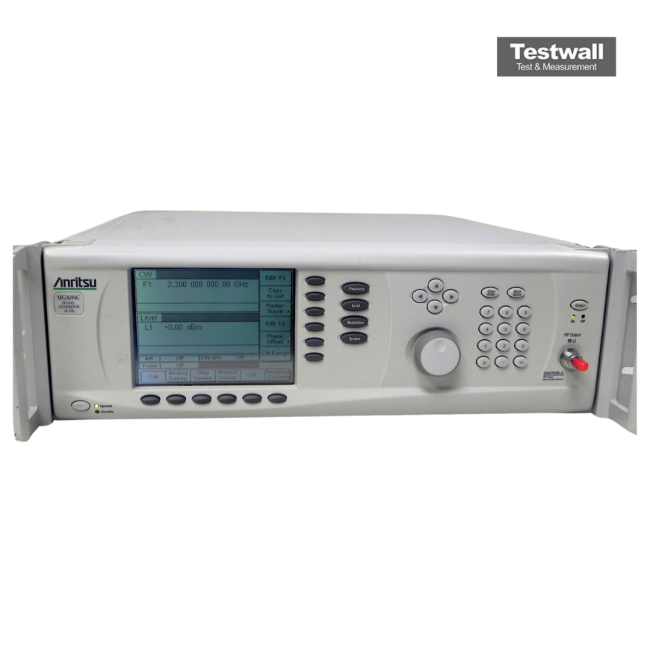

Anritsu MG3694C
Signal Generator 2-40 GHz
2 MHz to 40 GHz Frequency Range
-20 dBm to +20 dBm (typical) Output Power Range
0.001 Hz Frequency Resolution
-116 dBc/Hz at 10 kHz offset (at 10 GHz) Phase Noise
Low phase noise design with high harmonic suppression greater than 30 dBc Spectral Purity
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 40 GHz |
| Output Power Range | -20 dBm to +20 dBm (typical) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity | Low phase noise design with high harmonic suppression greater than 30 dBc |
| Modulation Capabilities | AM, FM, Phase Modulation, and Pulse Modulation |
| Frequency Switching Speed | Less than 10 ms (typical) |
| Output Connector | 2.4 mm (f) RF output connector |
| Interface | GPIB, USB, and Ethernet (LAN) remote control interfaces |
| Power Requirements | 100–240 VAC, 50/60 Hz, single phase |
Anritsu MG3694C Options:
- MG3694C - 1A - Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3694C - 1B - Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3694C - 2A - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 2B - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 2C - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 3 - Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise.
- MG3694C - 3X - Premium Phase Noise. Improves Option 3 < 1 kHz offset.
- MG3694C - 4 - 8 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version. Uses a digital down converter to significantly reduce SSB phase noise. All specifications apply ≥ 10 MHz.
- MG3694C - 5 - 8 MHz to 2 GHz RF Coverage. Uses an analog down converter. All specifications apply ≥ 10 MHz.
- MG3694C - 6 - Analog Sweep Capability. When used with Option 4, analog sweep capability is limited to ≥ 500 MHz.
- MG3694C - 7 - IF Up-Conversion. Adds an internal 40 GHz mixer for up-converting an IF signal.
- MG3694C - 8 - Power Monitor. Adds internal power measurement capability. Not available with Option 9.
- MG3694C - 9K - Rear Panel Output. Moves the RF output connector to the rear panel. Not available with Option 8.
- MG3694C - 9V - Rear Panel Output. Moves the RF output connector to the rear panel. Not available with Option 8.
- MG3694C - 10 - User-Defined Modulation Waveform Software. External software package provides the ability to download user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB or Ethernet. Requires Option 27.
- MG3694C - 12 - Frequency and Phase Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3694C - 14 - Amplitude Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3694C - 15A - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15B - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15C - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15D - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 16 - High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3694C - 17 - Delete Front Panel. Deletes the front panel for use in remote control applications. Only available with Options 1A or 1B.
- MG3694C - 18 - DC Output. Adds a rear panel BNC Twinax connector supplying +15 VDC, 1A (nominal). Not available with Option 7 or 15x.
- MG3694C - 22 - 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC. Output power derated by 2 dB. Requires Option 4 or 5.
- MG3694C - 26A - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3694C - 26B - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3694C - 27 - Internal LF and Pulse Generators. Provides modulation waveforms for internal AM, FM, ΦM and Pulse. Not available without Option 12, 14, or 26.
- MG3694C - 28A - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3694C - 28B - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3694C - 36 - Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments using the internal 100 MHz reference. Requires Option 3, 3X, or 3XA.
- MG3694C - 98 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides a calibration certificate, decal, and tamper seals.
- MG3694C - 99 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides everything included with Option 98 plus test report and uncertainty data.
| Model | MG3694C |
|---|
The Anritsu MG3694C is a broadband signal generator covering frequencies from 0.1 Hz to 40 GHz in a single coaxial output, extendable to 325 GHz with external multipliers. It offers exceptional flexibility for RF and microwave testing, with three phase-noise performance options (Standard, Ultra Low, Premium) and comprehensive modulation capabilities including IQ modulation with IF input support.
Engineered to replace the MG3690B, this generator provides advanced performance for signal simulations, from basic RF to highly complex microwave applications, while maintaining backward compatibility with earlier Anritsu models.
Testwall can supply the used Anritsu MG3694C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3694C.
