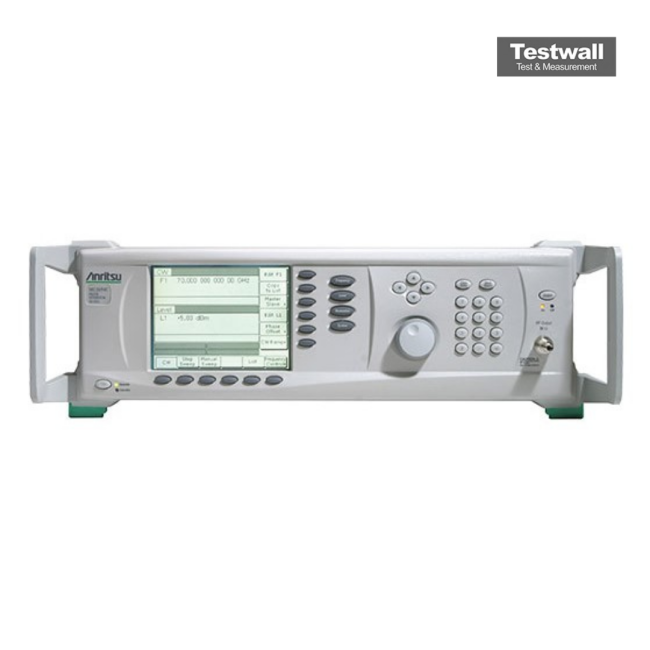

Anritsu MG3697C
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 67 GHz |
| Output Power Range | +20 dBm to -110 dBm (typical) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz, typical) |
| Switching Speed | Less than 5 ms (typical) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation, and I/Q Modulation |
| Harmonic Suppression | Greater than 20 dBc (typical) |
| Spurious Signals | Less than -60 dBc (non-harmonic, typical) |
| Interface and Connectivity | GPIB, USB, and Ethernet (LAN) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MG3697C Options:
- MG3697C - 1A - Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3697C - 1B - Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3697C - 2C - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3697C - 3 - Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise. Not available with Option 3X.
- MG3697C - 3X - Premium Phase Noise. Improves Option 3 < 1 kHz offset. Not available with Option 3.
- MG3697C - 15D - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3697C - 16 - High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3697C - 17 - Delete Front Panel. Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed. Only available with Options 1A or 1B.
- MG3697C - 22 - 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC. Output power is derated by 2 dB. Frequency resolution below 10 MHz is 0.02 Hz. No modulation available in the 0.1 Hz to 10 MHz band. Not available without Option 4 or 5.
- MG3697C - 26B - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3697C - 27 - Internal LF and Pulse Generators. Provides modulation waveforms for internal AM (if Option 14 installed), FM (if Option 12 installed), PM (if Option 12 installed) and Pulse (if Option 26A/B installed). Not available without Option 12, 14, or 26.
- MG3697C - 28B - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, PM, and Pulse Modulation.
- MG3697C - 36 - Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments using the internal 100 MHz reference. Requires Option 3 or 3X.
- MG3697C - CE - CE Compliance with CE mark.
- MG3697C - 98 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides a calibration certificate, decal, and "Calibration void if removed" tamper seals.
- MG3697C - 99 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides everything included with Option 98 plus test report and uncertainty data.
| Model | MG3697C |
|---|
The Anritsu MG3697C is a high-performance signal generator designed with advanced capabilities including stored setups, memory sequencing, master/slave operation, and precise user-level flatness correction. It supports internal and external time base calibration with a stability of <2 x 10⁻⁹/day and offers resolution as fine as 0.01 Hz. Featuring a secure mode, versatile parameter entry, and comprehensive sweep functions, it ensures accuracy and flexibility in demanding applications.
With wide-ranging sweep options, user-selectable steps, and fast dwell time control, the Anritsu MG3697C is ideal for RF testing, communications, and signal characterization tasks. It also integrates self-test diagnostics and supports multiple power meters for accurate path correction.
Testwall can supply the used Anritsu MG3697C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3697C.
