Anritsu

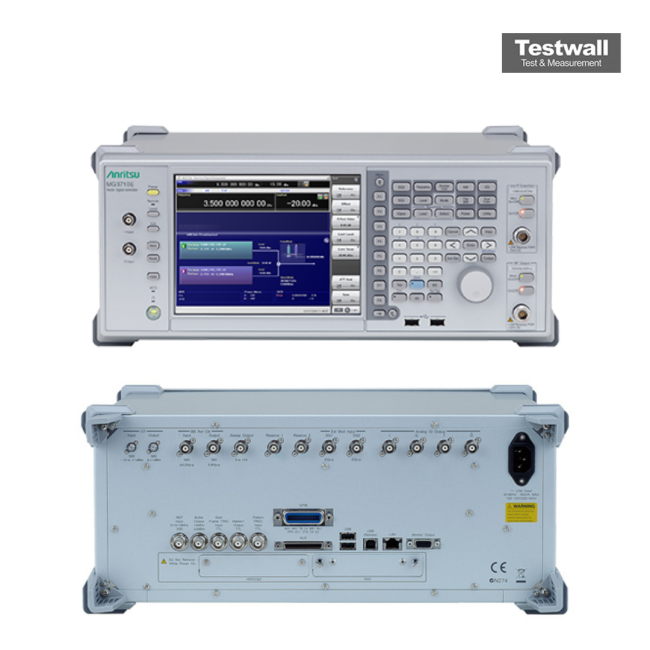

Anritsu MG3710E
1000kHz To 2.7GHz Vector Signal Generator
100 kHz to 2.7 GHz, 4 GHz, or 6 GHz (depending on configuration) Frequency Range
-144 dBm to +26 dBm (CW), varies by frequency and option Output Power Range
0.01 Hz Frequency Resolution
-138 dBc/Hz at 20 kHz offset (1 GHz carrier, typical) Phase Noise
AM, FM, PM, Pulse Modulation, and Vector (I/Q) Modulation Modulation Types
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz, 4 GHz, or 6 GHz (depending on configuration) |
| Output Power Range | -144 dBm to +26 dBm (CW), varies by frequency and option |
| Frequency Resolution | 0.01 Hz |
| Phase Noise | -138 dBc/Hz at 20 kHz offset (1 GHz carrier, typical) |
| Modulation Types | AM, FM, PM, Pulse Modulation, and Vector (I/Q) Modulation |
| Baseband Generator | Optional internal dual baseband generators with up to 160 MHz modulation bandwidth |
| Waveform Memory | Up to 4 Gsamples internal waveform memory (with optional expansion) |
| RF Output Connector | Type-N female (50 Ω) |
| Reference Frequency | Internal 10 MHz reference; external reference input (1 MHz to 40 MHz) supported |
| Interface & Connectivity | USB, LAN (LXI compliant), GPIB (optional); supports SCPI command set |
| Model | MG3710E |
|---|
The Anritsu MG3710E is a high-performance Vector Signal Generator covering a frequency range from 1000kHz to 2.7GHz. It supports multiple modulation types and dual RF outputs, ideal for advanced wireless communication testing.
This generator is suited for R&D, manufacturing, and testing of digital and analog communication systems with high spectral purity and excellent output power characteristics.
Testwall can supply the used Anritsu MG3710E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3710E.
