Anritsu ML2437A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -70 dBm to +20 dBm |
| Measurement Speed | Up to 1600 readings per second (buffered mode) |
| Display | Backlit LCD with dual numeric and graphical display capability |
| Number of Channels | 2 channels (dual channel measurement capability) |
| Interfaces | GPIB (IEEE 488.2), RS-232 |
| Sensor Compatibility | Compatible with Anritsu MA2400 series and MA2700 series power sensors |
| Measurement Modes | CW power, peak power, average power, and pulse power measurement |
| Power Supply | 90 to 264 VAC, 47 to 63 Hz, auto-ranging |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | ML2437A |
|---|

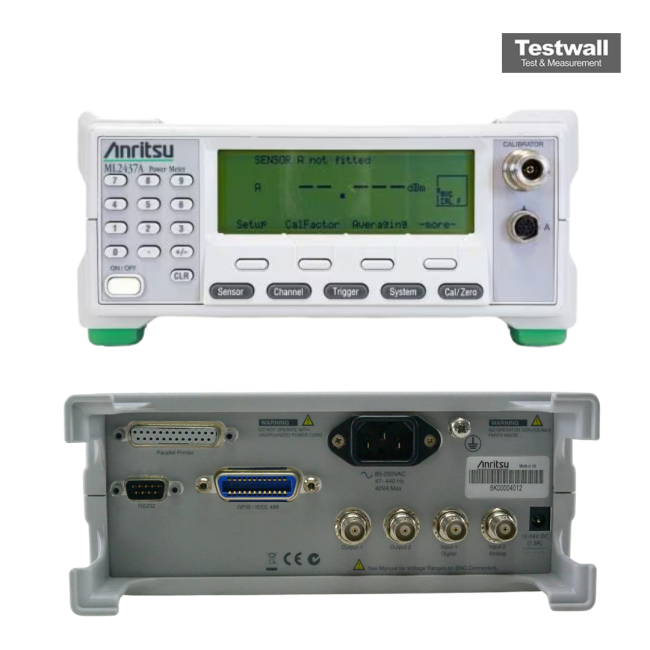

The Anritsu ML2437A Power Meter combines thermal accuracy, diode speed, and peak-power graphics in one device. It samples over 35k readings per second, achieves a 90 dB dynamic range with a single sensor, and includes a graphics display. Rugged and portable, it has one input and an optional NiMH battery offering six hours of continuous operation.
With profile mode, it records bursts of 200 data points at 35k samples/sec. Fully compatible with ML2430A meters, it improves ATE productivity by 2–10×, making it ideal for field and lab use.
Testwall can supply the used Anritsu ML2437A, fully tested. With expert support and global delivery, Testwall ensures reliable, high-performance instrumentation. Contact us for calibration or repair of the Anritsu ML2437A.
