Anritsu ML2438A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 110 GHz (sensor dependent) |
| Number of Channels | Dual Channel |
| Dynamic Range | -70 dBm to +44 dBm (sensor dependent) |
| Measurement Speed | Up to 1600 readings per second (buffered mode) |
| Display | Large backlit LCD with numeric and graphical display modes |
| Interfaces | GPIB, RS-232, and USB |
| Sensor Compatibility | Compatible with MA2400 and MA2700 series power sensors |
| Measurement Modes | Average power, peak power, and peak-to-average ratio |
| Power Supply | AC 90–264 V, 47–63 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Anritsu ML2438A Options:
- ML2438A - Option - Replaceable NiMH Battery (3000 mAhr NI-Mh, DR-36 series)
- ML2438A - Option - Front cover panel (optional environmental protection)
- ML2438A - Option - Softcase (optional environmental protection)
| Model | ML2438A |
|---|

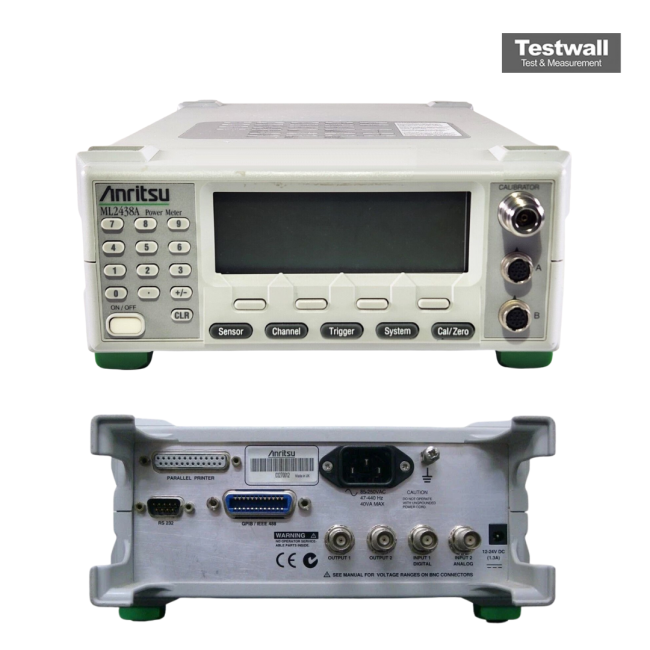

The Anritsu ML2438A Power Meter combines thermal meter accuracy, diode meter speed, and peak power meter display graphics. Sampling at more than 35 k samples per second and achieving 90 dB dynamic range with a single sensor, this dual‑input instrument features ruggedized housing and an optional high‑capacity NiMH battery for reliable use in both lab and field environments.
Equipped with high‑speed thermal sensors, GPIB communication and emulation, triggering controls, burst profile and power‑vs‑time graphics displays, and a parallel printer connector, the ML2438A is a versatile tool for rapid and precise power measurement tasks.
Testwall can supply the used Anritsu ML2438A Power Meter, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu ML2438A Power Meter.
