Anritsu ML4803A
| Attribute | Value |
|---|---|
| Measurement Function | Optical Power Meter |
| Wavelength Range | 800 nm to 1700 nm |
| Power Measurement Range | -70 dBm to +10 dBm |
| Measurement Uncertainty | ±0.2 dB |
| Display | LCD with backlight |
| Interface Connector | Universal Fiber Optic Connector Interface |
| Power Supply | AA Batteries (4x) or AC Adapter |
| Battery Life | Approximately 20 hours continuous use |
| Operating Temperature | -10°C to +50°C |
| Dimensions (W x H x D) | 76 mm x 165 mm x 36 mm |
Anritsu ML4803A Options:
- MA4601A - Sensor - Amorphous Power Sensor (coaxial-type)
- MA4603A - Sensor - Amorphous Power Sensor (coaxial-type)
- MA4701A - Sensor - Amorphous Power Sensor (coaxial-type)
- MA4703A - Sensor - Amorphous Power Sensor (coaxial-type)
- MA4705A - Sensor - Amorphous Power Sensor (coaxial-type)
- MA4602A - Sensor - Diode Power Sensor (coaxial-type)
- MA4604A - Sensor - Diode Power Sensor (coaxial-type)
- MA4702A - Sensor - Diode Power Sensor (coaxial-type)
- MA4704A - Sensor - Diode Power Sensor (coaxial-type)
- MP712A - Sensor - Waveguide Type Sensor
- MP713A - Sensor - Waveguide Type Sensor
- MP714A - Sensor - Waveguide Type Sensor
- MP715A - Sensor - Waveguide Type Sensor
- MP716A - Sensor - Waveguide Type Sensor
- MP717A - Sensor - Waveguide Type Sensor
- MP737A - Sensor - Waveguide Type Sensor
- MP738A - Sensor - Waveguide Type Sensor
- MA4001A - Accessory - Range Calibrator (for indicator full-scale calibration)
- MA4002A - Accessory - Sensor Adapter for quasi-millimeter wave (for MP712A/713A/737A/738A)
- MA4002B - Accessory - Sensor Adapter for millimeter wave (for MP714A/715A/716A/717A)
- MZ5003A - Accessory - Battery Power Supply (for DC operation)
| Model | ML4803A |
|---|

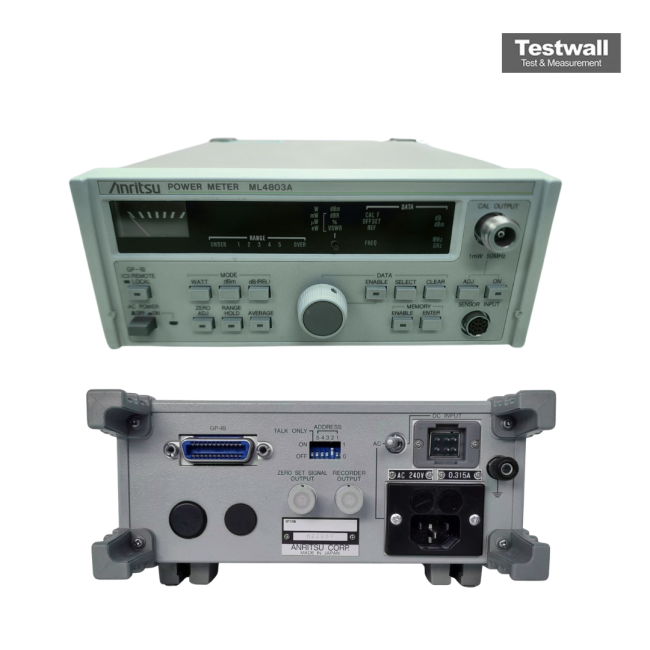

The Anritsu ML4803A is a precision power meter designed with an indicator to display detected electric signals as power, paired with high-performance sensors that accurately convert signals across a wide frequency range from 100 kHz to 90 GHz. It supports various sensor types, including super-wide coaxial amorphous and diode sensors, enabling low-level, wide-band, and millimeter wave measurements with high accuracy and stability.
With abundant functions, efficient memory operation, and compatibility with three power supplies, the Anritsu ML4803A offers excellent operability and flexibility for diverse power measurement applications across industries.
Testwall can supply the used Anritsu ML4803A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu ML4803A.
