Anritsu MN9605C
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1360 nm and 1460 nm to 1580 nm |
| Output Power | +7 dBm (maximum) |
| Power Stability | ±0.01 dB (over 1 hour) |
| Wavelength Accuracy | ±0.01 nm |
| Side Mode Suppression Ratio | 50 dB (minimum) |
| Linewidth | Less than 200 kHz |
| Polarization Extinction Ratio | 20 dB (minimum) |
| Optical Connector Type | FC/PC |
| Modulation | Internal and External modulation supported |
| Operating Temperature | 0°C to 40°C |
| Model | MN9605C |
|---|

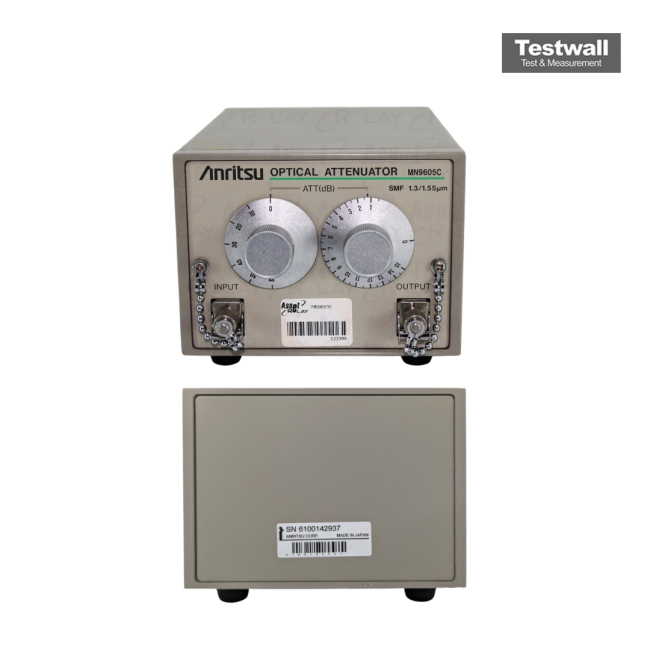

The Anritsu MN9605C is a high-precision variable optical attenuator optimized for single-mode fiber applications, supporting 9/125 µm fibers with an FC/PC interface. It provides attenuation up to 65 dB with a return loss greater than 40 dB, ensuring stable and accurate optical performance. With dual-mode adjustment—coarse stepping and fine continuous control—it offers flexibility for precise signal management in demanding optical systems.
Engineered for laboratory and field applications, the MN9605C ensures accuracy across a wide attenuation range. Its calibration-certified design guarantees reliable performance in optical testing and measurement environments.
Testwall can supply the used Anritsu MN9605C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MN9605C.
