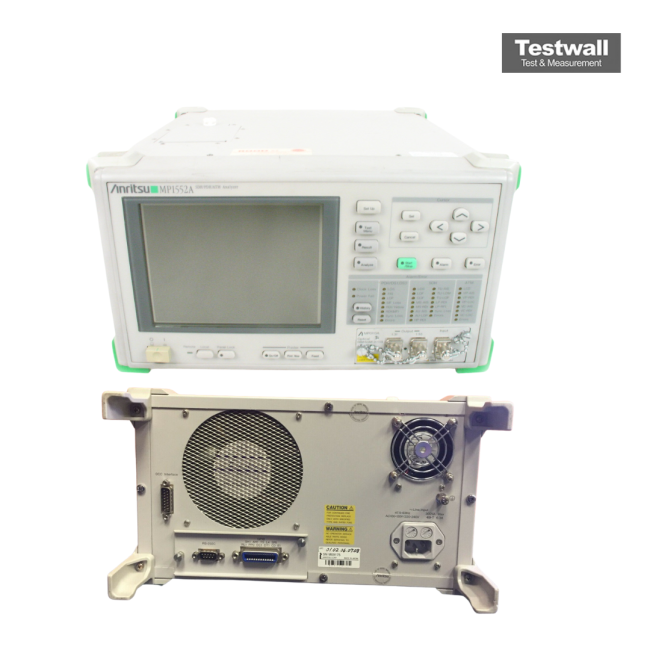

Anritsu MP1552A
| Attribute | Value |
|---|---|
| Bit Rate | 52 Mbps to 2.5 Gbps |
| Interface | SDH/SONET |
| Signal Levels Supported | STM-1, STM-4, STM-16 / OC-3, OC-12, OC-48 |
| Optical Interface | Single-mode fiber, multimode fiber |
| Wavelength | 1310 nm / 1550 nm |
| Measurement Functions | BER measurement, alarm detection, performance monitoring |
| Display | Built-in LCD display with graphical user interface |
| Power Supply | AC 100–240 V, 50/60 Hz; DC battery operation supported |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions / Weight | Approximately 310 mm (W) x 210 mm (H) x 80 mm (D) / Approx. 3.5 kg |
| Model | MP1552A |
|---|
The Anritsu MP1552A is a versatile SONET/SDH test module supporting analysis from STM‑1 (OC‑3) to STM‑64 (OC‑192). It offers complete BER testing, pattern generation, error injection, clock recovery, synchronization testing, and performance monitoring. With multi-layer payload mapping and alarm generation, it ensures detailed protocol validation across section to path layers, making it suitable for both lab and field testing.
Its compatibility with external interfaces like GPIB and RS‑232, along with logging functionality, provides robust support for long-duration network performance evaluation. Widely used in network rollout testing, it guarantees reliability in protocol analysis tasks.
Testwall can supply the used Anritsu MP1552A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1552A.
