Anritsu MP1601A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1), programmable word patterns |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Connector | SMA (female) |
| Clock Source | Internal or external clock reference |
| Interface | GPIB (IEEE 488.2) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm |
| Model | MP1601A |
|---|

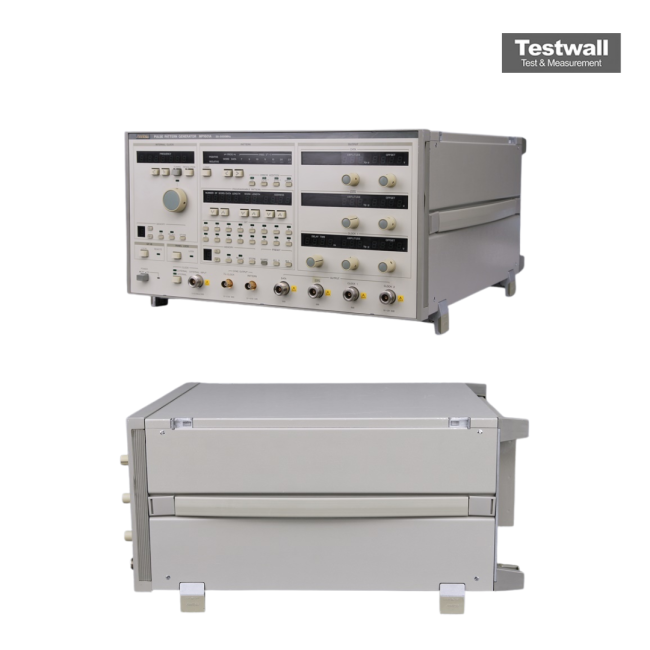

The Anritsu MP1601A Pulse Pattern Generator is designed for high-speed serial interface evaluation, supporting bit rates from 0.5 Gbps to 12.5 Gbps. It features programmable pattern sequences, adjustable output amplitude, and jitter injection. With low intrinsic jitter performance and remote operation via Ethernet/GPIB, it delivers precise signal integrity and compliance testing.
Engineered for demanding applications, the MP1601A is ideal for validating high-speed digital designs and ensuring compliance in advanced communication systems.
Testwall can supply the used Anritsu MP1601A Pulse Pattern Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1601A Pulse Pattern Generator.
