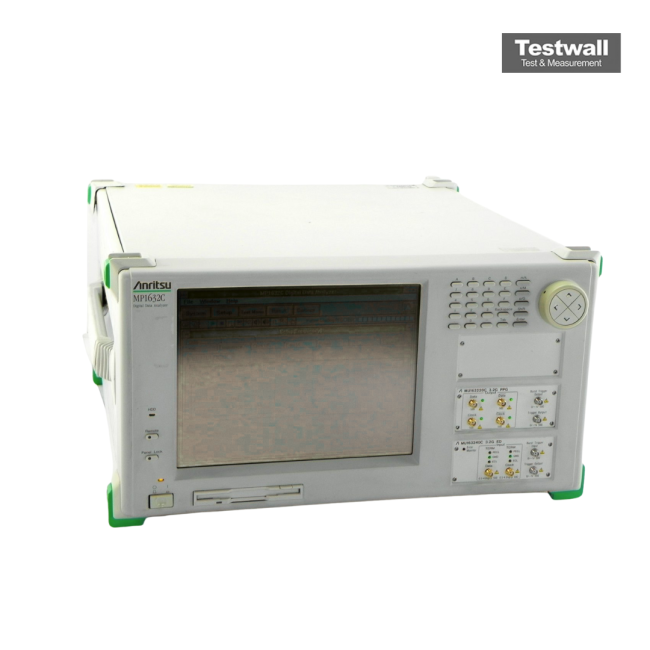

Anritsu MP1632C
| Attribute | Value |
|---|---|
| Bit Rate | Up to 3.2 Gb/s |
| Pattern Length | 2^31 - 1 (PRBS), programmable word lengths up to 32 Mbits |
| Number of Channels | Up to 4 channels (expandable with additional modules) |
| Output Voltage (High) | 0.5 V to 2.0 V (into 50 Ω) |
| Output Voltage (Low) | -2.0 V to 0.5 V (into 50 Ω) |
| Clock Source | Internal or external clock reference |
| Interface | GPIB (IEEE 488.2) and RS-232C |
| Error Detection | Built-in bit error rate (BER) measurement and error analysis |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
Anritsu MP1632C Options:
- MP1632C - 01 - GPIB
- MP1632C - 02 - Ethernet
- MP1632C - 03 - 3.2G Internal Synthesizer
| Model | MP1632C |
|---|
The Anritsu MP1632C combines a 3.2 Gb/s pulse pattern generator and error detector in one compact digital data analyzer, supporting a broad frequency range of 10 MHz to 3.2 GHz. It performs precise bit error rate testing, burst signal evaluation, and eye diagram/eye-margin analysis using an 8 Mb programmable pattern and delivering high-quality data and clock waveforms.
Ideal for R&D and manufacturing of SONET/SDH systems, WDM components, Gigabit-Ethernet, Fibre-Channel systems, and digital ICs, it ensures accurate burst measurement, waveform quality assessment, and error detection with 25 mVp-p sensitivity.
Testwall can supply the used Anritsu MP1632C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1632C.
