Anritsu
Anritsu MP1653A
0.05 - 3GHz Error Detector
50 Mbps to 3.2 Gbps Bit Rate Range
0.3 V to 2.0 V (into 50 Ω) Output Amplitude
2^7-1 to 2^23-1 PRBS, programmable word patterns Pattern Length
50 MHz to 3.2 GHz Clock Input Frequency
Less than 130 ps (20% to 80%) Rise/Fall Time
| Attribute | Value |
|---|---|
| Bit Rate Range | 50 Mbps to 3.2 Gbps |
| Output Amplitude | 0.3 V to 2.0 V (into 50 Ω) |
| Pattern Length | 2^7-1 to 2^23-1 PRBS, programmable word patterns |
| Clock Input Frequency | 50 MHz to 3.2 GHz |
| Rise/Fall Time | Less than 130 ps (20% to 80%) |
| Output Jitter | Less than 10 ps RMS |
| Interface | GPIB (IEEE 488.2) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (4U rack mount) |
| Model | MP1653A |
|---|

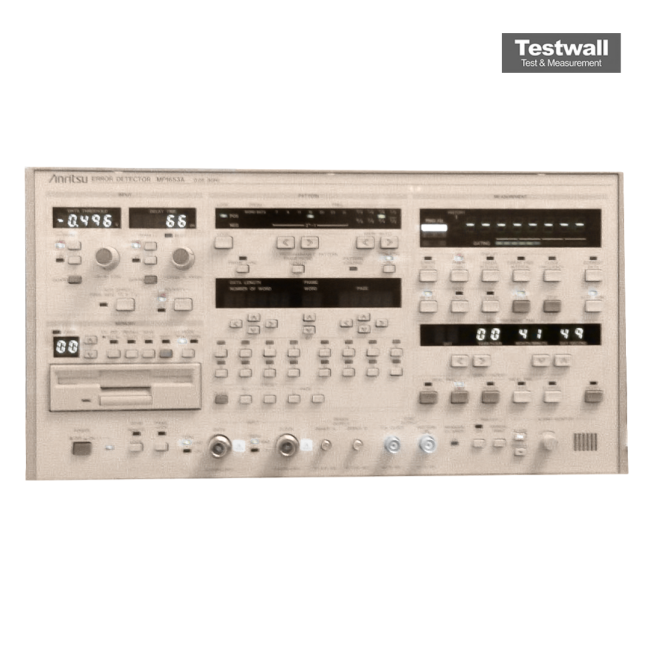

The Anritsu MP1653A 0.05-3 GHz Error Detector offers a one-touch auto-search function for optimal input threshold and phase settings, along with fast synchronization for 512 kbit patterns. It integrates a built-in high-speed printer and detects errors as frequently as every 0.1 seconds, utilizing a zero wait time counter gate.
Ideal for high-speed signal verification and error monitoring, this device supports seamless testing with reliable accuracy.
Testwall can supply the used Anritsu MP1653A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1653A.
