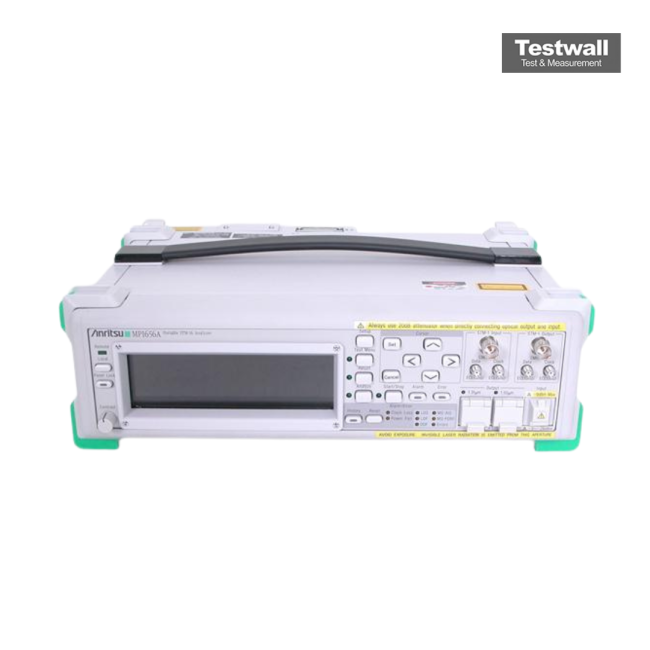

Anritsu MP1656A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1), programmable word patterns |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Connector | SMA (female) |
| Clock Source | Internal or external clock reference |
| Interface | GPIB, RS-232 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (W × H × D) | 426 mm × 177 mm × 451 mm |
| Model | MP1656A |
|---|
The Anritsu MP1656A is designed for use with the MP1550A/B PDH/SDH Analyzer, enabling analysis of section, H-path (AU), L-path (TU), PDH, and STM-16 layers. It offers DFB-LD 1.31/1.55 μm switchable output (Option 02), high-sensitivity optical input (–29 dBm), add/drop mode with MP1550A/B, and standalone operation for regenerator section tests. The MP1656A also supports section trace (J0), G.826 performance monitoring (B1), and includes a built-in floppy disk drive.
Compact, lightweight, and low-cost, the MP1656A enhances the MP1550A/B by providing STM-16 capability. Its intuitive controls, consistent with the MP1550A/B, ensure ease of use and versatile testing functionality.
Testwall can supply the used Anritsu MP1656A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1656A.
