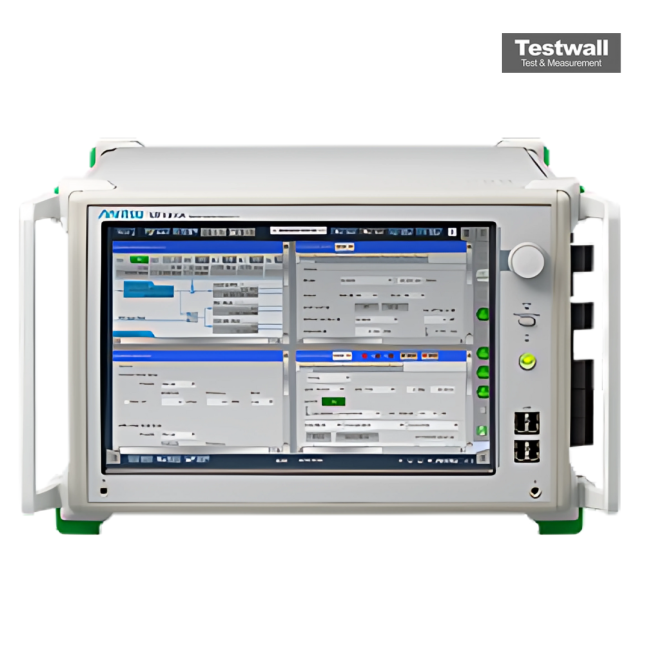

Anritsu MP1672C
| Attribute | Value |
|---|---|
| Bit Rate | Up to 3.2 Gb/s |
| Pattern Length | 2^31 - 1 (PRBS), programmable word lengths up to 2^23 bits |
| Output Amplitude | 0.5 V to 2.0 V (into 50 ohms) |
| Clock Input Frequency Range | 50 MHz to 3.2 GHz |
| Data Output Channels | 4 channels (DATA and DATA-bar outputs per channel) |
| Interface | GPIB (IEEE 488.2) |
| Output Impedance | 50 ohms |
| Rise/Fall Time | Less than 150 ps (20% to 80%) |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Model | MP1672C |
|---|
The Anritsu MP1672C is a high-performance signal quality analyzer designed for rigorous testing of digital communication systems. Supporting bit rates up to 10 Gbps, it enables precise eye pattern analysis and jitter measurements. Custom pattern configurations and compatibility with external BERT modules make it versatile for various telecom R&D and production uses.
Ideal for both transmitter and receiver validation, the MP1672C suits complex development and verification tasks in high-speed telecom environments.
Testwall can supply the used Anritsu MP1672C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1672C.
