Anritsu MP1702A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Crossing Point | 20% to 80% adjustable |
| Rise/Fall Time | Less than 35 ps (20% to 80%) |
| Clock Input Frequency | 9.8 MHz to 12.5 GHz |
| Data Output Jitter | Less than 3 ps RMS |
| Interface | GPIB (IEEE 488.2) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Model | MP1702A |
|---|

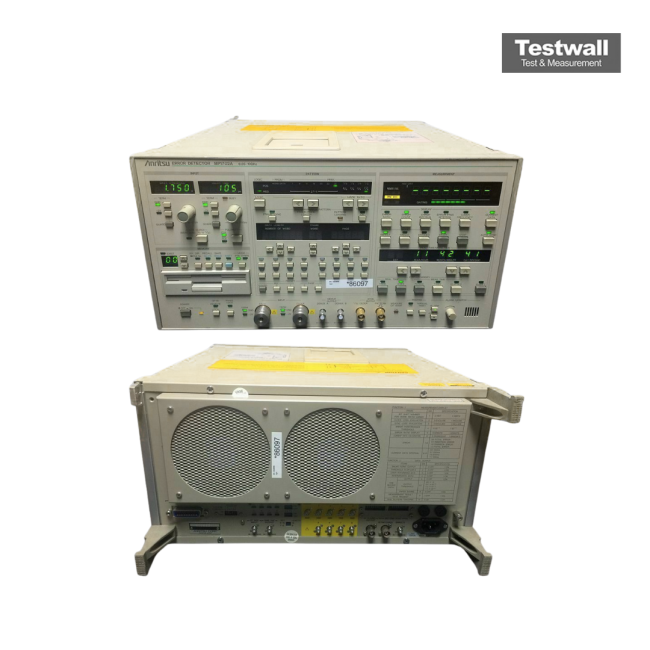

The Anritsu MP1702A is a high-performance error detector designed for advanced signal analysis across an operating frequency range of 0.05 to 10 GHz. It supports NRZ data input and RZ clock input waveforms with a 50% duty factor, offering precise synchronization of 512 kbit patterns. Its auto-search function enables optimum threshold and phase setting with a simple one-touch operation, while built-in high-speed printing ensures efficient data recording. Errors can be detected in intervals as short as 0.1 seconds, making it highly effective for demanding test environments.
This unit is ideal for evaluating high-speed digital communication systems, waveform analysis, and other precision test applications. Its robust design and quick synchronization features enhance both reliability and usability.
Testwall can supply the used Anritsu MP1702A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1702A.
