Anritsu MP1762C
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS: 2^7-1, 2^10-1, 2^11-1, 2^15-1, 2^20-1, 2^23-1, 2^31-1; Fixed patterns and user-defined patterns |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Impedance | 50 Ω |
| Rise/Fall Time | Less than 28 ps (20% to 80%) |
| Clock Input Frequency Range | 100 MHz to 12.5 GHz |
| Interface Connector Type | SMA (female) |
| Operating Temperature | 0°C to +40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Form Factor | Plug-in module for MP1760A/MP1800A Series mainframe |
| Model | MP1762C |
|---|

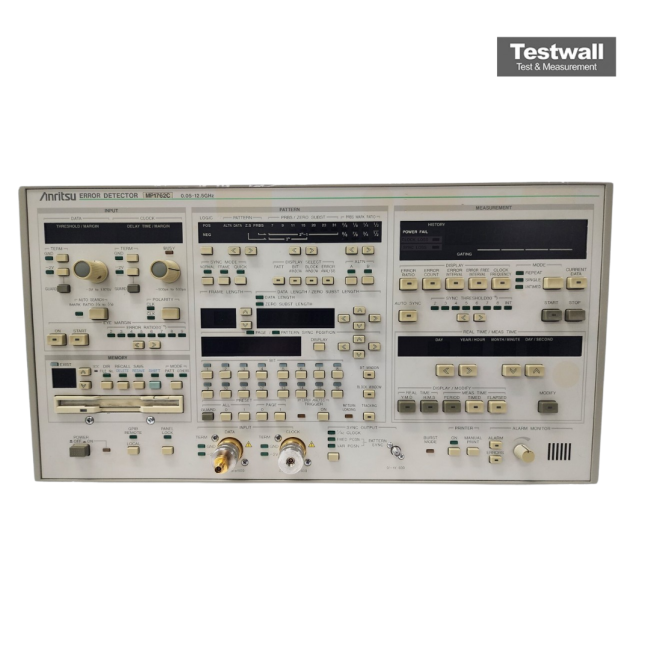

The Anritsu MP1762C is a 12.5 Gb/s bit-error-rate (BER) error detector module designed for precise validation of high-speed transmission systems. It supports NRZ data streams up to 12.5 GHz with a broad input range of 0.25–2.0 Vpp and a finely adjustable threshold from –3.0 to +1.875 Vpp in 1 mV increments. With ±500 ps clock-delay tuning at 1 ps precision, it ensures exceptional synchronization and accurate BER measurement in demanding test environments.
The MP1762C handles pseudo-random and fixed patterns up to 2^23-1 length, detecting omission, insertion, and total error modes. It is widely deployed in 10 Gbit/s optical and digital transmission path validation across telecom R&D and manufacturing facilities.
Testwall can supply the used Anritsu MP1762C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1762C.
