Anritsu MP1763B
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 12.5 Gbit/s |
| Output Amplitude | 0.5 V to 2.0 V (into 50Ω) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns up to 2^20 bits |
| Rise/Fall Time | Less than 28 ps (20% to 80%) |
| Output Jitter | Less than 3 ps RMS |
| Clock Source | Internal or External clock reference |
| Interface | GPIB and RS-232C |
| Output Connector | SMA (female) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
Anritsu MP1763B Options:
- MP1763B - 01 - 12.5 GHz synthesizer (50 MHz to 12.5 GHz)
- MP1763B - 03 - 1/4 speed output
| Model | MP1763B |
|---|

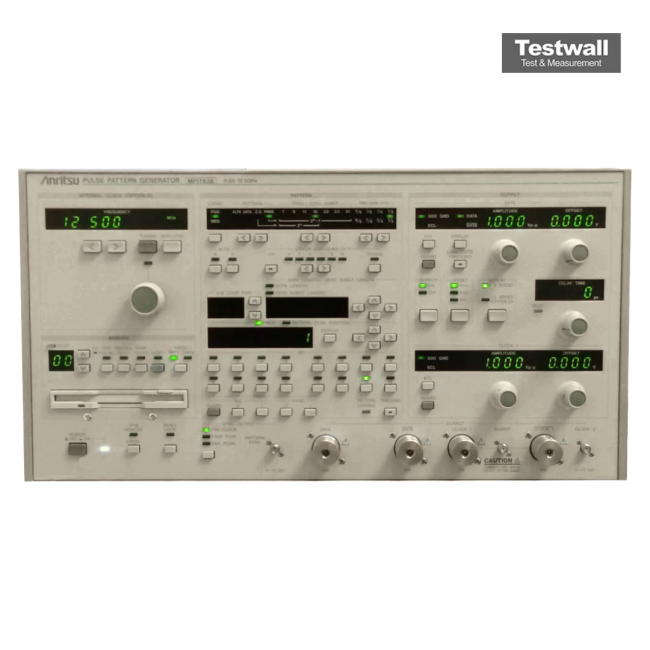

The Anritsu MP1763B Pulse Pattern Generator delivers precision in high-speed logic testing by enabling adjustable clock and data signal amplitudes from 0.25 to 2 Vp-p along with ±2 V offset control. Its variable delay clock supports evaluation of phase margins and time-dependent characteristics. With 8 Mbit programmable patterns, PRBS from 2⁷-1 to 2³¹-1 bits, and complementary outputs for both clock and data, it ensures high-quality waveforms and low FM/PM noise.
Ideal for R&D in digital systems and ICs, the MP1763B allows complete control over signal characteristics and pattern generation, facilitating versatile configuration across testing scenarios.
Testwall can supply the used Anritsu MP1763B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1763B.
