Anritsu MP1764A
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 12.5 Gbit/s |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns up to 2^20 bits |
| Input Sensitivity | 50 mV to 1000 mV (peak-to-peak) |
| Input Threshold Range | -2.0 V to +2.0 V |
| Measurement Functions | Bit Error Rate (BER), Error Count, Error Ratio, Error Interval |
| Interface | GPIB (IEEE 488.2) |
| Clock Input Frequency Range | 0.1 GHz to 12.5 GHz |
| Data Input Connector | SMA (Female) |
| Operating Temperature | 5°C to 40°C |
| Power Requirements | 100-240 VAC, 50/60 Hz |
Anritsu MP1764A Options:
- MP1764C - 01 - Error Analysis
- MP1764C - 02 - Differential Data Input Function
- MP1764C - 03 - Clock Recovery Function
- MP1764D - 01 - Error Analysis
| Model | MP1764A |
|---|

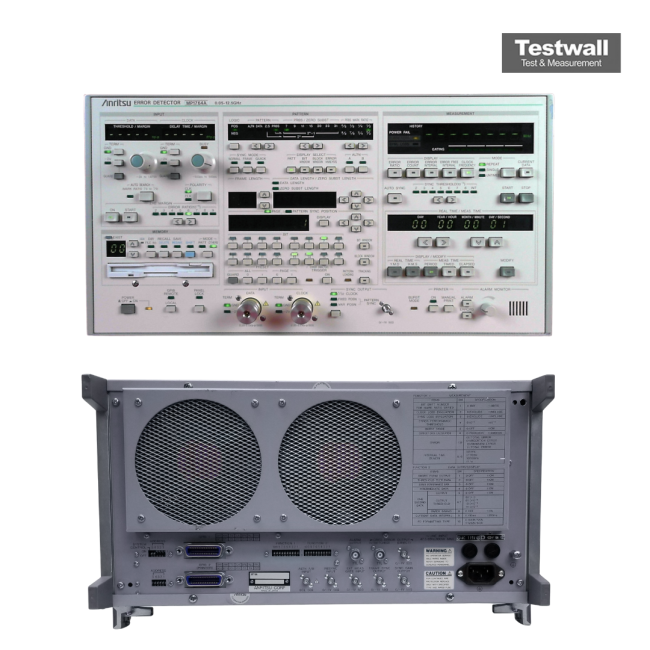

The Anritsu MP1764A Error Detector is designed for use with the MP1763B Pulse Pattern Generator, ensuring precise error detection in ITU-T compliance testing. With its auto-search functionality, the instrument automatically optimizes input thresholds and phase settings with a single key operation. It supports synchronization of 8 Mbits patterns in frame mode within seconds and can detect errors at intervals as short as 0.1 sec, delivering highly accurate results for ultrahigh-speed logic ICs and digital communication systems.
Its zero wait time counter gate and advanced error measurement features make it an ideal choice for R&D teams working on next-generation high-speed digital technologies. Engineers benefit from simplified setup and reliable performance in demanding environments.
Testwall can supply the used Anritsu MP1764A Error Detector, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1764A Error Detector.
