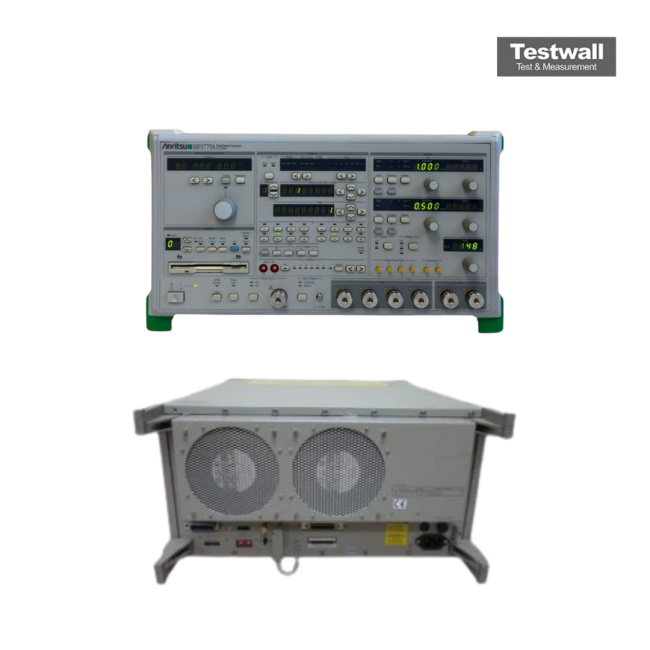

Anritsu MP1775A Pulse Pattern Generator, (0.1-12.5GHZ) Pulse Generator
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 GHz to 12.5 GHz |
| Output Data Rate | 100 Mbit/s to 12.5 Gbit/s |
| Output Amplitude | 0.5 V to 2.0 V (into 50Ω) |
| Rise/Fall Time | Less than 30 ps (20% to 80%) |
| Pattern Length | 2^7 - 1 to 2^31 - 1 (PRBS), programmable word patterns up to 8 Mbit |
| Output Jitter | Less than 3 ps RMS (typical) |
| Output Connector | 2.4 mm coaxial connector |
| Clock Reference | Internal/External 10 MHz reference clock |
| Interface | GPIB (IEEE 488.2) |
| Power Requirements | 100-240 VAC, 50/60 Hz |
Anritsu MP1775A Pulse Pattern Generator, (0.1-12.5GHZ) Pulse Generator Options:
- MP1775A - 03 - Internal synthesizer
| Model | MP1775A |
|---|
The Anritsu MP1775A Pulse Pattern Generator delivers four parallel data channels with speeds up to 12.5 Gbps, featuring independent memory capacity, programmable patterns, and PRBS options up to 2^31-1. Its low jitter, fast rise/fall times, and cross-point adjustment ensure highly accurate signal evaluation. With optional internal clock, external clock support, and SCPI remote control, it is ideal for advanced 10 Gbps WDM, optical device testing, and integration into Anritsu’s 40G/48G BER systems.
The MP1775A supports SONET/SDH frame generation, CID stress patterns, and simultaneous BER analysis across four channels when combined with the MP1776A error detector, making it versatile for high-speed transmission R&D.
Testwall can supply the used Anritsu MP1775A Pulse Pattern Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1775A Pulse Pattern Generator.
