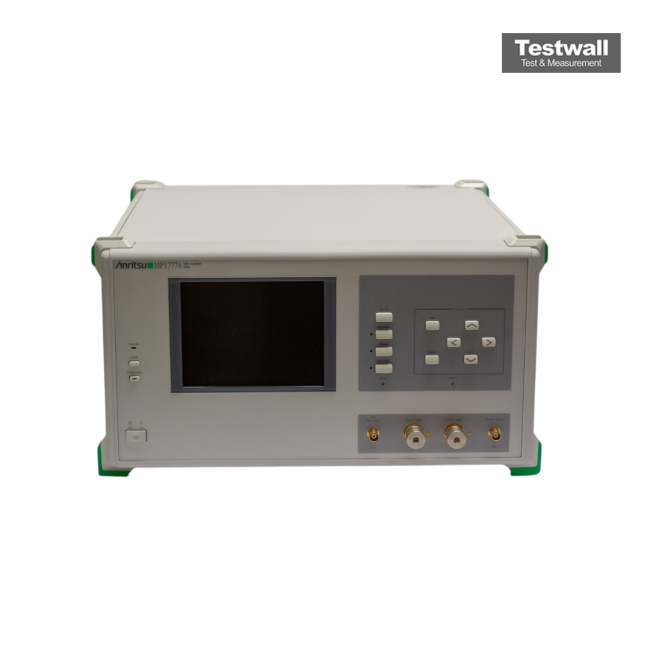

Anritsu MP1777A
| Attribute | Value |
|---|---|
| Frequency Range | 10 GHz |
| Bit Rate | 0.1 Gbit/s to 12.5 Gbit/s |
| Measurement Function | Jitter Tolerance, Jitter Transfer, Jitter Generation |
| Jitter Frequency Range | 100 Hz to 80 MHz |
| Input Sensitivity | 0.5 Vp-p (minimum) |
| Output Amplitude | 0.5 Vp-p to 2.0 Vp-p |
| Interface | GPIB, RS-232C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 5°C to 40°C |
| Applicable Standards | ITU-T G.823, G.824, G.825, SONET/SDH |
Anritsu MP1777A Options:
- MP1777A - 01 - 2494M/4988M/9977M jitter (2494.16, 4988.32, 9976.64 MHz)
- MP1777A - 02 - 2666M/5332M/10664M jitter (2666.0571, 5332.1142, 10664.2284 MHz)
- MP1777A - 04 - 3062M/6124M/12249M jitter (3062.3629, 6124.7259, 12249.4517 MHz)
- MP1777A - 05 - 3069M/6138M/12276M jitter (3069, 6138, 12276 MHz)
- MP1777A - 10 - High sensitive input (0.15 to 1.3 Vp-p)
| Model | MP1777A |
|---|
The Anritsu MP1777A is a jitter measuring instrument for OTN G.709, FEC and standard telecom rates. Fully conforming to ITU‑T O.172 and Telcordia, it measures and generates jitter with up to 80 MHz bandwidth and 3200 UIp‑p modulation at 10 Gb/s and FEC rates. Built‑in modulator/demodulator and automated functions enable accurate characterization of Jitter Tolerance, Jitter Transfer and Output Jitter for transmission equipment, optical modules and CDRs.
Supported interfaces include OC‑48/STM‑16, OC‑96/STM‑32 and OC‑192/STM‑64, plus FEC rates used in submarine systems. The high‑sensitivity input option measures signals from 150 mVp‑p. Automatic Jitter Sweep shortens production test time.
Testwall can supply the used Anritsu MP1777A Jitter Analyzer, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1777A Jitter Analyzer.
