Anritsu

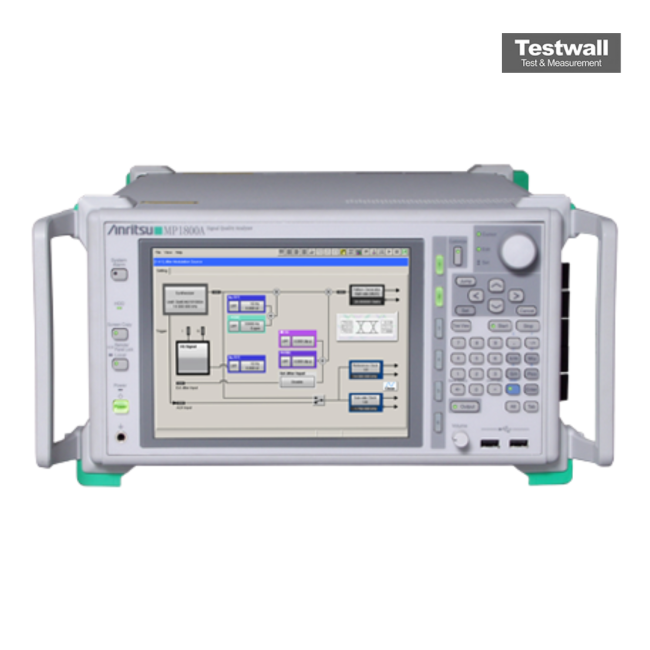

Anritsu MP1800A-015
12.50 Gbps Pattern Generator
0.1 Gbit/s to 12.5 Gbit/s Bit Rate Range
0.5 V to 3.5 V (single-ended) Output Amplitude
2^7-1 to 2^31-1 PRBS, programmable word patterns Pattern Length
MU181000A plug-in module for MP1800A Signal Quality Analyzer Interface Type
Less than 1 ps RMS (typical) Output Jitter
| Attribute | Value |
|---|---|
| Bit Rate Range | 0.1 Gbit/s to 12.5 Gbit/s |
| Output Amplitude | 0.5 V to 3.5 V (single-ended) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Interface Type | MU181000A plug-in module for MP1800A Signal Quality Analyzer |
| Output Jitter | Less than 1 ps RMS (typical) |
| Rise/Fall Time | Less than 35 ps (20% to 80%) |
| Connector Type | SMA (female) |
| Operating Temperature | 5°C to 40°C |
| Power Consumption | Approximately 30 W (module dependent) |
| Application | Optical and electrical device characterization, BER testing, high-speed digital design verification |
| Model | MP1800A-015 |
|---|
The Anritsu MP1800A-015 is a jitter generation option for the MP1800A BERT, providing comprehensive insertion of SJ, RJ, and BUJ with high-precision amplitude and frequency control. It is ideal for PCIe, SATA, and Ethernet testing.
This module enables accurate receiver tolerance and compliance evaluations, while enhancing overall BERT performance with fully programmable GUI-based automation.
Testwall can supply the used Anritsu MP1800A-015, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1800A-015.
