Anritsu

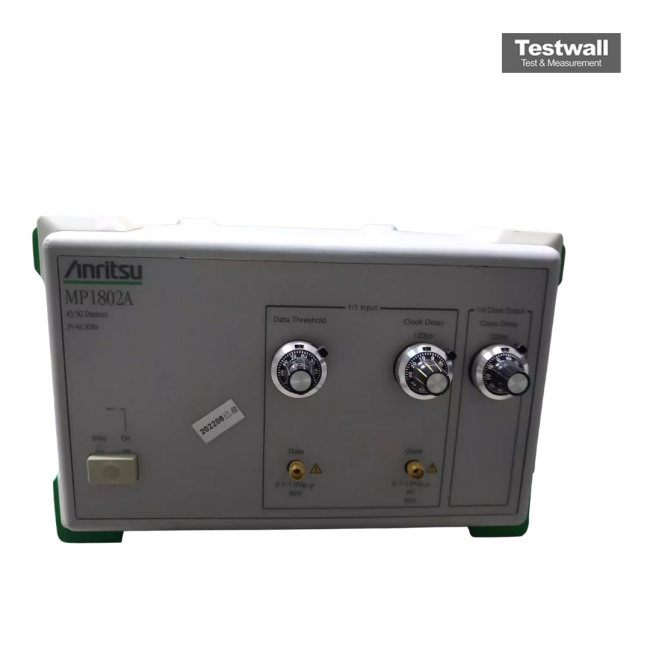

Anritsu MP1802A
Up to 32.1 Gbit/s Bit Rate
PRBS (2^7-1, 2^9-1, 2^11-1, 2^15-1, 2^20-1, 2^23-1, 2^31-1), Zero Substitution, User-Defined Patterns Data Pattern
0.5 V to 3.5 V (single-ended), up to 7.0 V (differential peak-to-peak) Output Amplitude
Less than 12 ps (20% to 80%) Rise/Fall Time
50 Ohms Output Impedance
| Attribute | Value |
|---|---|
| Bit Rate | Up to 32.1 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^9-1, 2^11-1, 2^15-1, 2^20-1, 2^23-1, 2^31-1), Zero Substitution, User-Defined Patterns |
| Output Amplitude | 0.5 V to 3.5 V (single-ended), up to 7.0 V (differential peak-to-peak) |
| Rise/Fall Time | Less than 12 ps (20% to 80%) |
| Output Impedance | 50 Ohms |
| Jitter Addition | Sinusoidal Jitter (SJ), Random Jitter (RJ), Spread Spectrum Clocking (SSC) |
| Clock Reference | Internal or External Reference Clock Input |
| Interface | GPIB, USB, Ethernet (LAN) |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Model | MP1802A |
|---|
The Anritsu MP1802A is a precision PAM4 signal generator supporting 26–32 Gbaud PAM4 and NRZ signals, engineered for advanced transmission testing. It offers independent lane control, ultra-low jitter, and seamless integration with MP1800A series testers.
This unit ensures superior signal fidelity for 100G, 200G, and 400G interface validation, making it ideal for high-speed digital network development and verification.
Testwall can supply the used Anritsu MP1802A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1802A.
