Anritsu
Anritsu MS2025B
VNA Master, Handheld Network Analyzer, 500 kHz - 6 GHz
2 MHz to 4 GHz Frequency Range
Up to 100 dB Dynamic Range
-50 dBm to +3 dBm Output Power Range
2-Port Vector Network Analyzer Number of Ports
S11, S21, S12, S22 (full 2-port S-parameters) Measurement Parameters
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 4 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Measurement Parameters | S11, S21, S12, S22 (full 2-port S-parameters) |
| Impedance | 50 Ohms |
| Connector Type | Type-N (f), 50 Ohm |
| Display | 8.4-inch color LCD touchscreen |
| Power Supply | AC 100–240 V, 50/60 Hz; DC 11–32 V |
| Weight | Approximately 3.8 kg (8.4 lbs) |
Anritsu MS2025B Options:
- MS2025B - 0010 - Built-in Bias-Tee, +12 V to +32 V variable
- MS2025B - 0015 - Vector Voltmeter
- MS2025B - 0019 - High Accuracy Power Meter (requires external USB sensor, sold separately)
- MS2025B - 0031 - GPS Receiver (requires external GPS antenna, sold separately)
- MS2025B - 0098 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Includes calibration certificate.
- MS2025B - 0099 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Includes calibration certificate, test report, and uncertainty data.
- MS2025B - 0411 - Ethernet Connectivity
| Model | MS2025B |
|---|

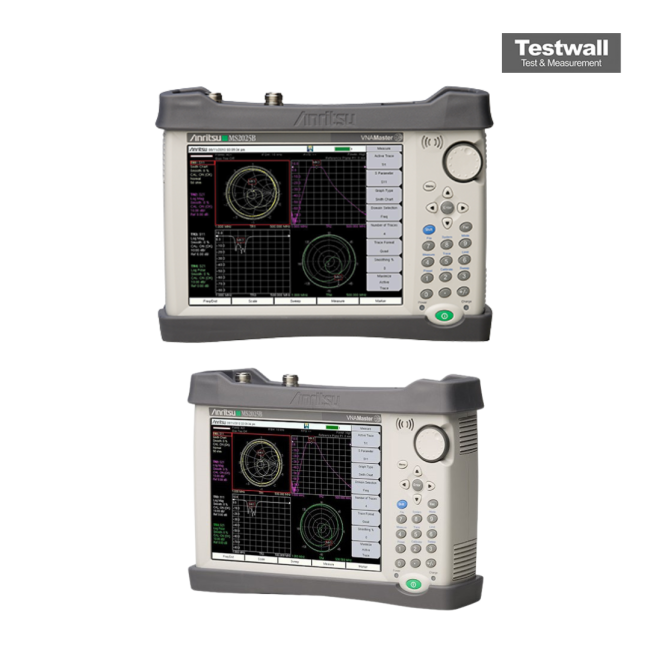

The Anritsu VNA Master MS2025B is a compact handheld vector network analyzer with 2-port, 1-path architecture, delivering precise S-parameter measurements with error correction. Operating from 500 kHz to 4/6 GHz, it ensures both magnitude and phase accuracy in field conditions.
Its rugged, battery-powered design and touchscreen interface make it ideal for use in telecom towers, flightlines, vehicles, and outdoor communication system testing.
Testwall can supply the used Anritsu VNA Master MS2025B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu VNA Master MS2025B.
