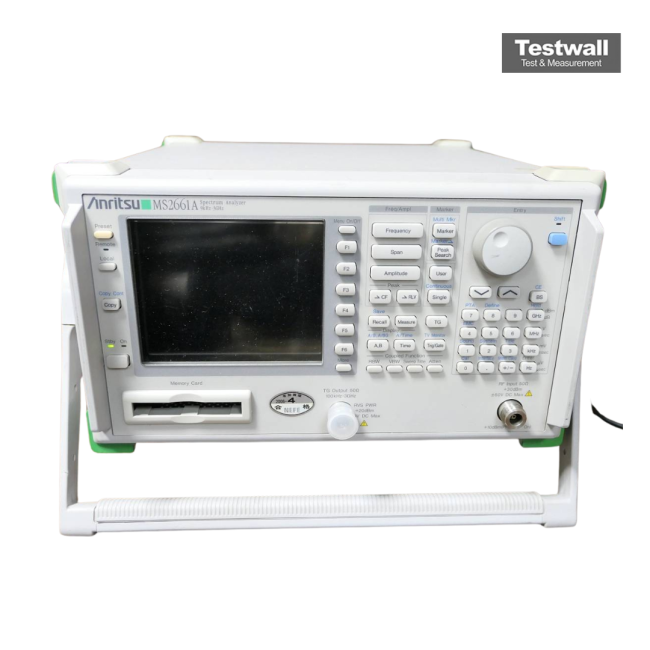

Anritsu MS2661A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz (in 1-3-10 steps) |
| Video Bandwidth | 1 Hz to 3 MHz (in 1-3-10 steps) |
| Display Average Noise Level (DANL) | -148 dBm (typical) at 1 GHz, 10 Hz RBW |
| Phase Noise | -98 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Amplitude Accuracy | ±1.5 dB |
| Dynamic Range | 70 dB (third-order intermodulation free dynamic range) |
| Power Requirements | 90 to 132 VAC / 180 to 250 VAC, 48 to 66 Hz, 150 VA |
| Model | MS2661A |
|---|
The Anritsu MS2661A Spectrum Analyzer offers a frequency range from 9 kHz to 3 GHz, with a resolution bandwidth of 30 Hz to 5 MHz. It ensures high accuracy with a superior C/N ratio, low distortion, and reliable level measurement, making it ideal for precise signal analysis. The analyzer supports measurement functions such as frequency counter, adjacent channel power, occupied bandwidth, and FM demodulation waveform display.
Its two-screen display, flexible sweep times (20 ms to 1000 s), and multiple interfaces (IEEE 488 GP-IB, RS232) enhance usability and application range, supporting diverse signal analysis tasks across industries at a reasonable cost.
Testwall can supply the used Anritsu MS2661A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2661A.
