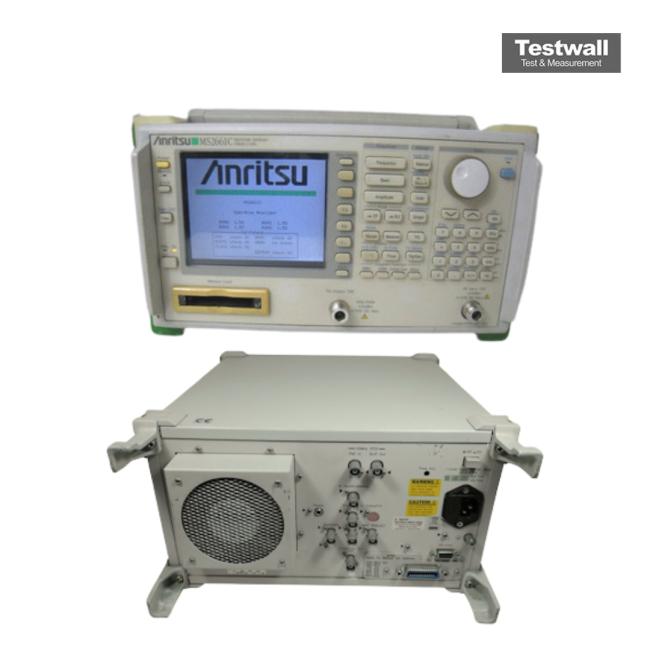

Anritsu MS2661C
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz (in 1-3-10 steps) |
| Display Average Noise Level | -148 dBm (typical) at 1 GHz, 10 Hz RBW |
| Phase Noise | -98 dBc/Hz or less at 1 GHz carrier, 10 kHz offset |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Frequency Reference Accuracy | ±0.3 ppm (after warm-up) |
| Dynamic Range | 70 dB or greater (typical) |
| Video Bandwidth | 1 Hz to 3 MHz (in 1-3-10 steps) |
| Power Supply | AC 100-240 V, 50/60 Hz |
Anritsu MS2661C Options:
- MS2661C - 01 - Reference crystal oscillator
- MS2661C - 02 - Narrow resolution bandwidth
- MS2661C - 04 - High-speed time domain sweep
- MS2661C - 06 - Trigger/gate circuit
- MS2661C - 07 - AM/FM demodulator
- MS2661C - 08 - Pre-amplifier
- MS2661C - 10 - Centronics interface (GPIB cannot be installed simultaneously)
- MS2661C - 12 - QP detector (requires Option 02, QP-BW: 0.2/9/120 kHz)
- MS2661C - 14 - PTA parallel I/O (Option 10 cannot be installed simultaneously)
- MS2661C - 15 - Sweep signal output
- MS2661C - 19 - DC coupled input (requires Option 02)
- MS2661C - 20 - Tracking generator
- MS2661C - 21 - Television monitor (Multi)
- MS2661C - 22 - 75 Ω input (Option 12, 19 and 20 cannot be installed simultaneously)
- MS2661C - 23 - 75 Ω tracking generator (Option 12, 19 and 20 cannot be installed simultaneously)
- MS2661C - 24 - Television monitor (Brazil)
| Model | MS2661C |
|---|
The Anritsu MS2661C Spectrum Analyzer offers a frequency range of 100 Hz to 3 GHz, making it ideal for AM/FM radio, digital cellular, satellite broadcasting, and microwave equipment. With options including a high-stability reference crystal oscillator (Option 01), narrow resolution bandwidths of 30 Hz to 300 Hz (Option 02), and a tracking generator from 9 kHz to 3 GHz (Option 20), it ensures precise and reliable frequency measurements.
This versatile analyzer supports development, adjustment, inspection, and maintenance of electronic parts and communication equipment across multiple industries, ensuring accuracy and high-resolution performance.
Testwall can supply the used Anritsu MS2661C Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2661C Spectrum Analyzer.
