Anritsu MS2692A
50Hz To 26.5GHz Signal Analyzer
100 kHz to 6.0 GHz (MS2692A-006) or up to 13.5 GHz (MS2692A-013) or up to 26.5 GHz (MS2692A-026) Frequency Range
-163 dBm/Hz (typ.) at 1 GHz with preamplifier on Displayed Average Noise Level (DANL)
-130 dBc/Hz (typ.) at 1 GHz carrier, 10 kHz offset Phase Noise
Up to 125 MHz (standard); optional bandwidth extensions available Analysis Bandwidth
Greater than 100 dB (typ.) third-order intermodulation distortion free dynamic range Dynamic Range
€12,400.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.0 GHz (MS2692A-006) or up to 13.5 GHz (MS2692A-013) or up to 26.5 GHz (MS2692A-026) |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typ.) at 1 GHz with preamplifier on |
| Phase Noise | -130 dBc/Hz (typ.) at 1 GHz carrier, 10 kHz offset |
| Analysis Bandwidth | Up to 125 MHz (standard); optional bandwidth extensions available |
| Dynamic Range | Greater than 100 dB (typ.) third-order intermodulation distortion free dynamic range |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) DC to 3 GHz; +23 dBm above 3 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (in 1-3-10 steps); FFT analysis mode also available |
| Display | 10.4-inch color TFT LCD touchscreen display |
| Interface & Connectivity | USB, LAN (Ethernet), GPIB; supports remote control via SCPI commands |
Anritsu MS2692A 50Hz To 26.5GHz Signal Analyzer Options:
- MS2692A - 001 - Rubidium Frequency Ref
- MS2692A - 003 - 3GHZ Preselector Lower Limit
- MS2692A - 008 - 6GHZ Preamp
- MS2692A - 017 - Noise Figure Measurement
- MS2692A - 020 - 6GHZ Vector Signal Generator
- MS2692A - 031 - Wide Bandwidth Analysis Extension
- MS2692A - 037 - Rubidium Frequency Ref
- MS2692A - 050 - Hdd Digitizing Interface
- MS2692A - 067 - Microwave Preselector Bypass
- MS2692A - 077 - 62.5MHZ Analysis Bandwidth
- MS2692A - 078 - 125MHZ Analysis Bandwidth
- MS2692A - 101 - Rubidium Frequency Ref
- MS2692A - 103 - 3GHZ Preselector Lower Limit
- MS2692A - 108 - 6GHZ Preamp
- MS2692A - 117 - Noise Figure Measurement
- MS2692A - 120 - 6GHZ Vector Signal Generator
- MS2692A - 131 - Wide Bandwidth Analysis Extension
- MS2692A - 137 - Rubidium Frequency Ref
- MS2692A - 150 - Hdd Digitizing Interface
- MS2692A - 167 - Microwave Preselector Bypass
- MS2692A - 177 - 62.5MHZ Analysis Bandwidth
- MS2692A - 178 - 125MHZ Analysis Bandwidth
- MS2692A - 180 - Cpu/Windows7 Upgrade
- MS2692A - 277 - 62.5MHZ Analysis Bandwidth
- MS2692A - 278 - 125MHZ Analysis Bandwidth
- MS2692A - MX269000A - Standard Software
- MS2692A - MX269011A - W-Cdma/Hspa Downlink Measurement Software
- MS2692A - MX269012A - W-Cdma/Hspa Uplink Measurement Software
- MS2692A - MX269013A - Gsm/Edge Measurement Software
- MS2692A - MX269013A-001 - Edge Evolution Measurement Software
- MS2692A - MX269014A - Etc/Dsrc Measurement Software
- MS2692A - MX269015A - Td-Scdma Measurement Software
- MS2692A - MX269017A - Vector Modulation Analysis Software
- MS2692A - MX269020A - Lte Downlink Measurement Software
- MS2692A - MX269020A-001 - Lte-Advanced Fdd Downlink Measurement Software
- MS2692A - MX269021A - Lte Uplink Measurement Software
- MS2692A - MX269021A-001 - Lte-Advanced Fdd Uplink Measurement Software
- MS2692A - MX269022A - Lte Tdd Downlink Measurement Software
- MS2692A - MX269022A-001 - Lte-Advanced Tdd Downlink Measurement Software
- MS2692A - MX269023A - Lte Tdd Uplink Measurement Software
- MS2692A - MX269023A-001 - Lte-Advanced Tdd Uplink Measurement Software
- MS2692A - MX269024A - Cdma2000 Forward Link Measurement Software
- MS2692A - MX269024A-001 - All Measure Function
- MS2692A - MX269026A - Ev-Do Forward Link Measurement Software
- MS2692A - MX269026A-001 - All Measure Function
- MS2692A - MX269028A - Wlan Measurement Software (802.11N/11A/11B/11G/11J/11P)
- MS2692A - MX269028A-002 - 802.11Ac (160 MHZ) Measurement Software
- MS2692A - MX269030A - W-Cdma Bs Measurement Software
- MS2692A - MX269051A - 5G Standard Measurement Software (Base License)
- MS2692A - MX269051A-011 - Nr Tdd Sub-6GHZ Downlink
- MS2692A - MX269051A-061 - Nr Tdd Sub-6GHZ Uplink
- MS2692A - MX269099A - Standard Waveform Pattern
- MS2692A - MX269901A - Hsdpa/Hsupa Iqproducer
- MS2692A - MX269902A - Tdma Iqproducer
- MS2692A - MX269904A - Multi-Carrier Iqproducer
- MS2692A - MX269905A - Mobile Wimax Iqproducer
- MS2692A - MX269908A - Lte Iqproducer
- MS2692A - MX269908A-001 - Lte-Advanced Fdd Option
- MS2692A - MX269910A - Lte Tdd Iqproducer
- MS2692A - MX269910A-001 - Lte-Advanced Tdd Option
- MS2692A - MX269911A - Wlan Iqproducer
- MS2692A - MX269911A-001 - 802.11Ac (80 MHZ) Option
- MS2692A - MX269912A - Td-Scdma Iqproducer
- MS2692A - MX269913A - 5G Nr Tdd Sub-6GHZ Iqproducer
- MS2692A - MX269970A - 1Xev-Do Reverse Receiver Test Waveform Pattern
- MS2692A - MX705010A - Wi-Sun Phy Measurement Software
- MS2692A - MX705110A - Wi-Sun Protocol Monitor
| Model | MS2692A |
|---|

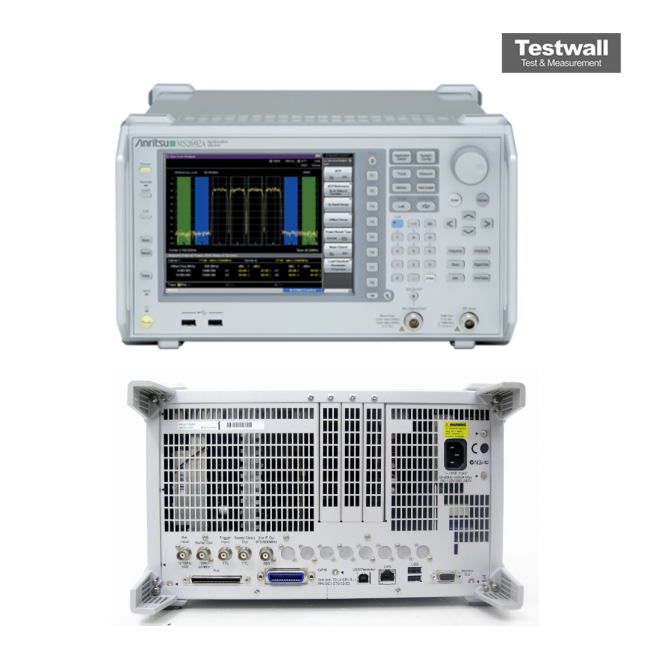

The Anritsu MS2692A Signal Analyzer covers a wide frequency range from 50Hz to 26.5GHz with 31.25MHz standard analysis bandwidth. It features RBW from 30Hz to 31.25MHz for spectrum and 1Hz to 10MHz for signal analysis, with typical level accuracy of ±0.3 dB. Numerous built-in functions support high-end spectrum analysis capabilities with excellent dynamic range and multifunctional performance.
Ideal for Tx and Rx testing, the MS2692A uses FFT technology for detailed signal analysis in both time and frequency domains. It supports wideband and specific band analysis, with optional signal generation for CW and modulated outputs.
Testwall can supply the used Anritsu MS2692A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2692A.
