Anritsu MS2711B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Dynamic Range | +20 dBm to -105 dBm |
| Frequency Resolution | 100 Hz |
| Amplitude Accuracy | ±1.5 dB |
| Resolution Bandwidth (RBW) | 1 kHz to 1 MHz in 1-3-10 steps |
| Video Bandwidth (VBW) | 1 kHz to 300 kHz in 1-3-10 steps |
| Display | Sunlight-readable color LCD, 320 x 240 pixels |
| Battery Life | Approximately 2 hours with standard battery pack |
| RF Input Connector | Type N, 50 Ohm |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu MS2711B Options:
- MS2711B - Option 8 - 20 dB Preamplifier, Built-in, 1 MHz to 3.0 GHz
- MS2711B - Option 20 - Tracking Generator, Built-in, 10 MHz to 3.0 GHz
| Model | MS2711B |
|---|

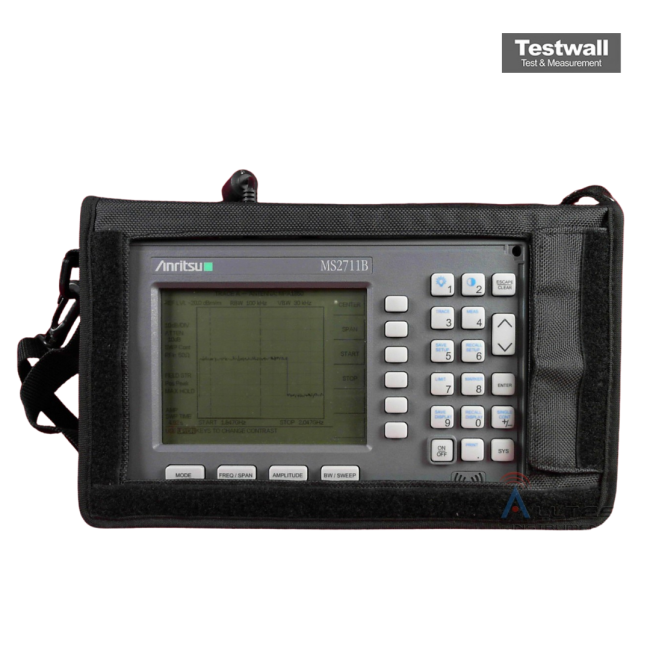

The Anritsu MS2711B Handheld Spectrum Analyzer covers 100 kHz to 3.0 GHz with a built-in pre-amplifier, lightweight 4.9 lbs design, and battery operation for true portability. It features RBWs from 10 kHz to 1 MHz, VBWs from 100 Hz to 300 kHz, amplitude accuracy of ±2 dB, and noise level below -115 dBm. The unit supports trace averaging, reference level offset, overlay, limit lines, multilingual interface, and a 50-ohm interface adaptable to 75-ohms, ensuring versatile measurement capabilities.
Its one-button dedicated measurements simplify testing of cellular, WLAN, and broadcasting systems, with functions such as channel power, ACPR, occupied bandwidth, and spurious measurements. Optional tracking generator adds scalar analysis from 10 MHz to 3.0 GHz.
Testwall can supply the used Anritsu MS2711B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2711B.
