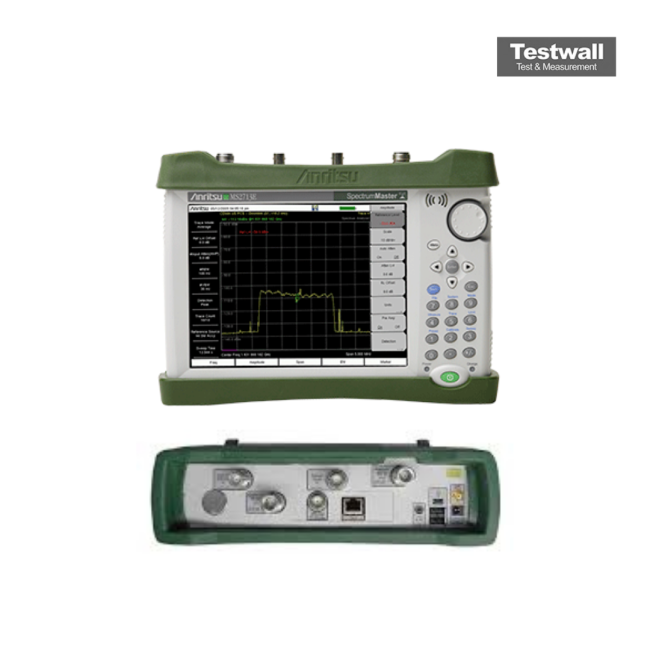

Anritsu MS2713E
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 7.1 GHz |
| Dynamic Range | +20 dBm to -163 dBm (DANL) |
| Display | 7-inch (800 x 480) sunlight-readable color LCD touchscreen |
| Battery Life | Approximately 4 hours with standard Li-Ion battery pack |
| Weight | 3.0 kg (6.6 lbs) including battery |
| Dimensions | 264 mm x 193 mm x 72 mm (10.4 in x 7.6 in x 2.8 in) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz in 1-3-10 steps |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) at 1 GHz |
| Input Impedance | 50 Ohms (nominal) |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
| Model | MS2713E |
|---|
The Anritsu MS2713E Spectrum Master offers spectrum analysis from 9 kHz to 6 GHz with advanced tools including interference detection, channel scanning, and GPS-based coverage mapping. It supports AM/FM/PM modulation analysis, PIM hunting, and power meter integration, ensuring precise RF measurements. Lightweight and rugged, it is built for field engineers and network specialists requiring reliable portable performance.
With capabilities for GSM, W‑CDMA, LTE, WiMAX, and digital‑TV formats, the MS2713E is ideal for diverse communication environments. Optional tracking generator and GPS functionality enhance field testing efficiency.
Testwall can supply the used Anritsu MS2713E Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2713E Spectrum Analyzer.
