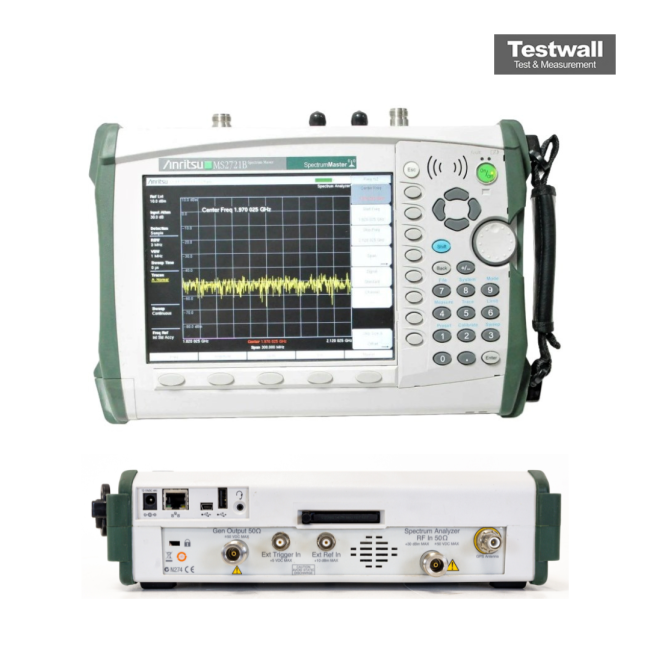

Anritsu MS2721B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 7.1 GHz |
| Display Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -163 dBm (with preamplifier enabled, typical) |
| Dynamic Range | Up to 107 dB |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Input Impedance | 50 Ohms |
| Battery Life | Approximately 2.5 hours with standard battery pack |
| Display | 7-inch TFT color LCD, 800 x 480 pixels |
| Weight | Approximately 3.9 kg (8.6 lbs) with battery |
| Model | MS2721B |
|---|
The Anritsu MS2721B is a 7.1 GHz handheld Spectrum Analyzer offering a wide frequency range from 9 kHz to 7.1 GHz, featuring high precision with >101 dB dynamic range, –163 dBm DANL, –95 dBc/Hz phase noise at 1 GHz, and GPS-locked frequency accuracy of < ±25 ppb.
It supports measurements such as occupied bandwidth, channel power, ACPR, interference spectrograms, RSSI, and includes multiple detectors, markers, limit-line envelopes, and sweep-save features for wireless LAN, 3G, WiMAX, AM/FM validation, and medical monitoring systems. Weighing under 7 pounds (≈3.2 kg), it excels in both field and lab environments.
Testwall can supply the used Anritsu MS2721B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2721B.
