Anritsu MS2724B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 20 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm (typical) at 1 GHz with preamp on |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) at 1 GHz |
| Dynamic Range | Up to 108 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz in 1-3-10 steps |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Input Impedance | 50 Ohms |
| Display | 7-inch daylight-viewable color LCD touchscreen (800 x 480 pixels) |
| Battery Life | Approximately 2 hours with standard battery pack |
| Operating Temperature Range | -10°C to +55°C |
Anritsu MS2724B Options:
- MS2724B - 009 - IQ Demodulation Hardware
- MS2724B - 019 - High Accuracy Power Meter (PSN50 sensor not included)
- MS2724B - 025 - Interference Analysis
- MS2724B - 027 - Channel Scanner
- MS2724B - 031 - GPS (includes GPS antenna)
- MS2724B - 033 - cdmaOne and CDMA2000 1xRTT (OTA) (requires Opt. 009, 031)
- MS2724B - 034 - EVDO Over The Air (OTA) Measurement (requires Option 009, 031)
- MS2724B - 035 - W-CDMA/HSDPA OTA (requires Opt. 009)
- MS2724B - 037 - Mobile WiMAX Over The Air (OTA) Measurement (requires Opt. 009)
- MS2724B - 040 - GSM/GPRS/EDGE RF Measurement (requires Opt. 009)
- MS2724B - 041 - GSM/GPRS/EDGE Demod (requires Opt. 009)
- MS2724B - 042 - CDMA RF Measurement (requires Opt. 009)
- MS2724B - 043 - cdmaOne and CDMA2000 1xRTT Demodulator (requires Opt. 009)
- MS2724B - 044 - W-CDMA/HSDPA RF Measurement (requires Opt. 009)
- MS2724B - 045 - W-CDMA Demodulation (requires Opt. 009)
- MS2724B - 046 - Fixed WiMAX RF Measurement (requires Opt. 009)
- MS2724B - 047 - Fixed WiMAX Demodulation (requires Opt. 009)
- MS2724B - 062 - EVDO RF Measurement (requires Opt. 009)
- MS2724B - 063 - EVDO Demodulator (requires Opt. 009)
- MS2724B - 065 - W-CDMA/HSDPA Demodulation (requires Opt. 009)
- MS2724B - 066 - Mobile WiMAX RF Measurement (requires Opt. 009)
- MS2724B - 067 - Mobile WiMAX Demodulator (requires Opt. 009)
| Model | MS2724B |
|---|

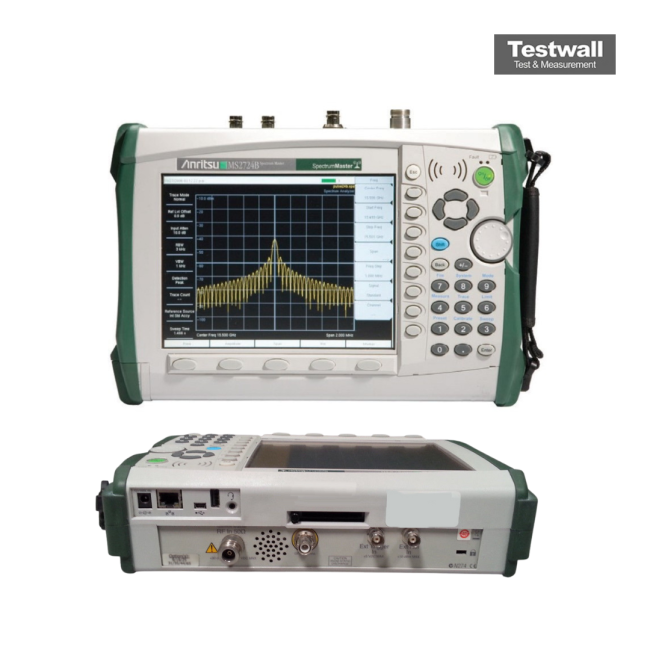

The Anritsu MS2724B is a 20 GHz handheld spectrum analyzer offering a frequency range from 9 kHz to 20 GHz. It features a daylight-viewable color display, built-in preamplifier up to 4 GHz, and advanced noise level performance at -159 dBm. With RBWs/VBWs from 1 Hz to 3 MHz and flexible trace management, it ensures precise analysis of wireless signals.
Designed for both field and bench use, the MS2724B supports wireless LAN, 3G, UWB, and medical monitoring systems. Its lightweight design, smart measurements, and demodulation capabilities make it highly versatile for engineers.
Testwall can supply the used Anritsu MS2724B Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2724B Spectrum Analyzer.
