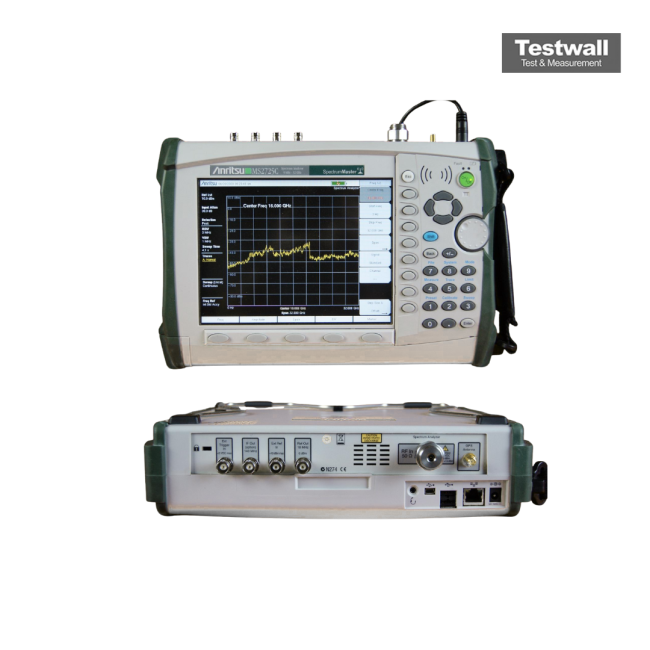

Anritsu MS2725C
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 20 GHz |
| Display | 7-inch daylight-viewable color LCD touchscreen (800 x 480 pixels) |
| Dynamic Range | +20 dBm to -163 dBm (DANL) |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical, 1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Battery Life | Approximately 4 hours with internal lithium-ion battery |
| Weight | Approximately 3.6 kg (7.9 lbs) with battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Connectivity/Interfaces | USB, Ethernet (LAN), Mini-USB, and external GPS port |
Anritsu MS2725C 9kHz-32GHz Spectrum Analyzer Options:
- MS2725C - 0007 - Secure Data Operation
- MS2725C - 0009 - Iq Demodulation Hardware
- MS2725C - 0019 - High Accuracy Power Meter (Requires Power Sensor)
- MS2725C - 0024 - Iq Waveform Capture
- MS2725C - 0025 - Interference Analysis
- MS2725C - 0027 - Channel Scanner
- MS2725C - 0031 - Gps Receiver (Requires Antenna P/N 2000-1528-R)
- MS2725C - 0033 - Cdma Over-The-Air (Ota) Measurements
- MS2725C - 0034 - Ev-Do Over-The-Air (Ota) Measurements
- MS2725C - 0035 - W-Cdma/Hspa+ Over-The-Air (Ota) Measurements
- MS2725C - 0037 - Mobile Wimax Over-The-Air (Ota) Measurements
- MS2725C - 0038 - Td-Scdma/Hspa+ Over-The-Air (Ota) Measurements
- MS2725C - 0040 - Gsm/Edge Rf Measurements
- MS2725C - 0041 - Gsm/Edge Rf Demodulation
- MS2725C - 0042 - Cdma Rf Measurements
- MS2725C - 0043 - Cdma Demodulation
- MS2725C - 0044 - W-Cdma/Hspa+ Rf Measurements
- MS2725C - 0046 - Fixed Wimax Rf Measurements
- MS2725C - 0047 - Fixed Wimax Rf Demodulation
- MS2725C - 0060 - Td-Scdma/Hspa+ Rf Measurements
- MS2725C - 0061 - Td-Scdma/Hspa+ Rf Demodulation
- MS2725C - 0062 - Ev-Do Rf Measurements
- MS2725C - 0063 - Ev-Do Demodulation
- MS2725C - 0065 - W-Cdma/Hspa+ Demodulation
- MS2725C - 0066 - Mobile Wimax Rf Measurements
- MS2725C - 0067 - Mobile Wimax Demodulation
- MS2725C - 0089 - Zero Span If Output
- MS2725C - 0090 - Gated Sweep
- MS2725C - 0431 - Coverage Mapping
- MS2725C - 0509 - Am/Fm/Pm Analyzer
- MS2725C - 0541 - Lte Rf Measurements
- MS2725C - 0542 - Lte Modulation Measurements
- MS2725C - 0543 - 15 MHZ And 20 MHZ Lte Modulation Measurements
- MS2725C - 0546 - Lte Over-The-Air (Ota) Measurements
- (RECOMMEND OPTION 0031)
- MS2725C - 0551 - Td-Lte Rf Measurements
- MS2725C - 0552 - Td-Lte Modulation Measurements
- MS2725C - 0556 - Td-Lte Over-The-Air (Ota) Measurements
| Model | MS2725C |
|---|
The Anritsu MS2725C Spectrum Analyzer features a wide frequency range from 9kHz to 32GHz, with a resolution bandwidth (RBW) range of 1Hz to 10MHz. It includes a built-in preamplifier and AM/FM/SSB demodulator, all housed in a portable, battery-powered unit designed for challenging RF and physical environments.
Ideal for spectrum monitoring, WiFi/WiFi5 installation and testing, and RF/microwave/cellular signal analysis, the MS2725C delivers precise measurements with reliability.
Testwall can supply the used Anritsu MS2725C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2725C.
