Anritsu

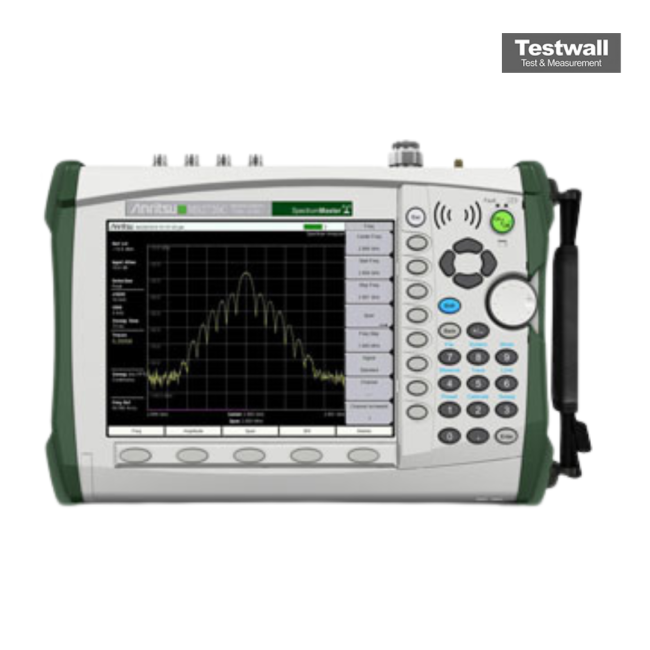

Anritsu MS2726C
9kHz to 43GHz Spectrum Analyzer
9 kHz to 13 GHz Frequency Range
>110 dB Dynamic Range
-163 dBm (with preamplifier enabled) Displayed Average Noise Level (DANL)
-100 dBc/Hz at 10 kHz offset (typical) Phase Noise
1 Hz to 10 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 13 GHz |
| Dynamic Range | >110 dB |
| Displayed Average Noise Level (DANL) | -163 dBm (with preamplifier enabled) |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Amplitude Accuracy | ±0.5 dB |
| Display | 8.4-inch color TFT LCD touchscreen, 800 x 600 resolution |
| Battery Life | Approximately 2 hours with standard battery pack |
| Interfaces/Connectivity | USB, Ethernet (LAN), External Monitor, GPS (optional) |
| Weight | Approximately 8.4 lbs (3.8 kg) with battery |
Anritsu MS2726C 9kHz to 43GHz Spectrum Analyzer Options:
- MS2726C - 0007 - Secure Data Operation
- MS2726C - 0009 - Iq Demodulation Hardware
- MS2726C - 0019 - High Accuracy Power Meter (Requires Power Sensor)
- MS2726C - 0024 - Iq Waveform Capture
- MS2726C - 0025 - Interference Analysis
- MS2726C - 0027 - Channel Scanner
- MS2726C - 0031 - Gps Receiver (Requires Antenna P/N 2000-1528-R)
- MS2726C - 0033 - Cdma Over-The-Air (Ota) Measurements (Requires Option 0009 & 0031)
- MS2726C - 0034 - Ev-Do Over-The-Air (Ota) Measurements (Requires Option 0009 & 0031)
- MS2726C - 0035 - W-Cdma/Hspa+ Over-The-Air (Ota) Measurements (Requires Option 0009)
- MS2726C - 0037 - Mobile Wimax Over-The-Air (Ota) Measurements (Recommend Option 0031) (Requires Option 0009)
- MS2726C - 0038 - Td-Scdma/Hspa+ Over-The-Air (Ota) Measurements (Recommend Option 0031) (Requires Option 0009)
- MS2726C - 0040 - Gsm/Edge Rf Measurements (Requires Option 0009)
- MS2726C - 0041 - Gsm/Edge Rf Demodulation (Requires Option 0009)
- MS2726C - 0042 - Cdma Rf Measurements (Requires Option 0009)
- MS2726C - 0043 - Cdma Demoduation (Requires Option 0009)
- MS2726C - 0044 - W-Cdma/Hspa+ Rf Measurements (Requires Option 0009)
- MS2726C - 0046 - Fixed Wimax Rf Measurements (Requires Option 0009)
- MS2726C - 0047 - Fixed Wimax Rf Demodulation (Requires Option 0009)
- MS2726C - 0060 - Td-Scdma/Hspa+ Rf Measurements (Requires Option 0009)
- MS2726C - 0061 - Td-Scdma/Hspa+ Rf Demodulation (Requires Option 0009)
- MS2726C - 0062 - Ev-Do Rf Measurements (Requires Option 0009)
- MS2726C - 0063 - Ev-Do Demodulation (Requires Option 0009)
- MS2726C - 0065 - W-Cdma/Hspa+ Demodulation (Requires Option 0009)
- MS2726C - 0066 - Mobile Wimax Rf Measurements (Requires Option 0009)
- MS2726C - 0067 - Mobile Wimax Demodulation (Requires Option 0009)
- MS2726C - 0089 - Zero Span If Output
- MS2726C - 0090 - Gated Sweep
- MS2726C - 0098 - Standard Calibration (Ansi Z540-1-1994)
- MS2726C - 0099 - Premium Calibration To Ansi Z540-1-1994 Plus Test Data
- MS2726C - 0431 - Coverage Mapping (Requires Option 0031)
- MS2726C - 0509 - Am/Fm/Pm Analyzer
- MS2726C - 0541 - Lte Rf Measurements (Requires Option 0009)
- MS2726C - 0542 - Lte Modulation Measurements (Requires Option 0009)
- MS2726C - 0543 - 15 MHZ And 20 MHZ Lte Modulation Measurements (Requires 0541, 0542, 0551 Or 0552)
- MS2726C - 0546 - Lte Over-The-Air (Ota) Measurements (Requires Option 0009)
- (RECOMMEND OPTION 0031)
- MS2726C - 0551 - Td-Lte Rf Measurements (Requires Option 0009)
- MS2726C - 0552 - Td-Lte Modulation Measurements (Requires Option 0009)
- MS2726C - 0556 - Td-Lte Over-The-Air (Ota) Measurements (Recommend Option 0031) (Requires Option 0009)
| Model | MS2726C |
|---|
The Anritsu MS2726C Spectrum Analyzer covers a wide frequency range from 9kHz to 43GHz with 1Hz to 10MHz RBW, integrated preamplifier, and AM/FM/SSB demodulator. Compact, battery-powered, and portable, it is ideal for RF, microwave, WiFi, and cellular signal measurements.
This analyzer ensures reliable performance in demanding environments, supporting spectrum monitoring, signal testing, and wireless installations with efficiency and precision.
Testwall can supply the used Anritsu MS2726C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2726C.
