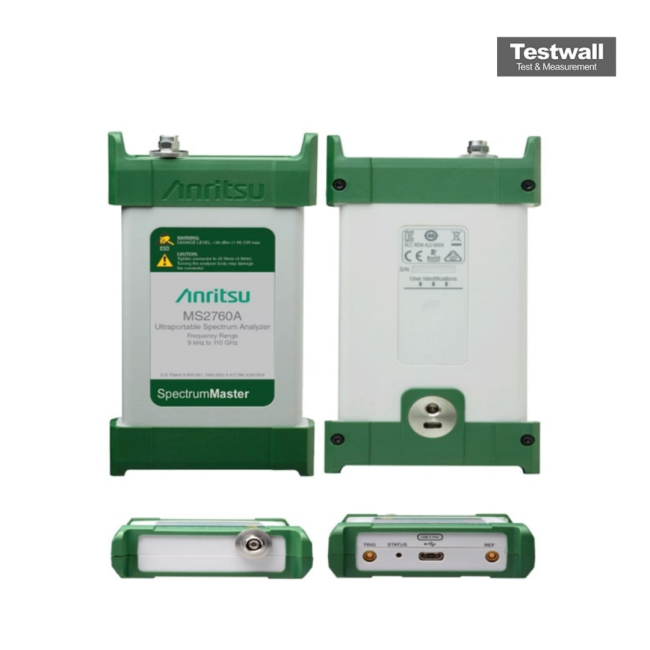

Anritsu MS2760A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 110 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Dynamic Range | Up to 78 dB |
| Resolution Bandwidth (RBW) | 1 Hz – 3 MHz |
| Input Power (Maximum) | +23 dBm (200 mW) |
| Sweep Speed | Up to 1 THz/sec (streaming mode) |
| Interface/Connectivity | USB 3.0 (PC-hosted, no internal display) |
| Form Factor | Ultra-portable, handheld USB-powered spectrum analyzer |
| Operating Temperature | 0°C to +50°C |
Anritsu MS2760A Options:
- MS2760A - 0032 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 32 GHz
- MS2760A - 0044 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 44 GHz
- MS2760A - 0050 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 50 GHz
- MS2760A - 0070 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 70 GHz
- MS2760A - 0090 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 90 GHz
- MS2760A - 0110 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 110 GHz
- MS2760A - 0145 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 145 GHz
- MS2760A - 0170 - Spectrum Master, Ultraportable Spectrum Analyzer, 9 kHz to 170 GHz
- MS2760A - 0032-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0044-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0050-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0070-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0090-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0110-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0145-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0170-0098 - Standard Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1)
- MS2760A - 0032-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0044-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0050-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0070-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0090-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0110-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0145-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
- MS2760A - 0170-0099 - Premium Calibration (ISO/IEC 17025 and ANSI/NCSL Z540-1 plus test data)
| Model | MS2760A |
|---|
The Anritsu MS2760A is the world’s first handheld spectrum analyzer covering 9 kHz to 170 GHz, designed for extreme portability and high-performance mmWave analysis. USB-powered and Windows-controlled, it enables compact yet powerful measurements in lab, production, or field environments.
Its compact form supports probe-tip proximity in wafer-level testing, enhancing dynamic range while minimizing insertion loss. Perfect for 5G, automotive radar, and satellite communication setups.
Testwall can supply the used Anritsu MS2760A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2760A.
