Anritsu MS2830A-040
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3.6 GHz |
| Option | 040 - 3.6 GHz Frequency Extension |
| Phase Noise | -104 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Displayed Average Noise Level (DANL) | -158 dBm/Hz (typ.) at 1 GHz with preamplifier |
| Input Level (Maximum) | +30 dBm (1 W) |
| Dynamic Range | Over 100 dB |
| Amplitude Accuracy | ±0.5 dB (typ.) |
| Analysis Bandwidth | Up to 10 MHz (31.25 MHz with option) |
| Spurious Response | -70 dBc or less |
| Model | MS2830A-040 |
|---|

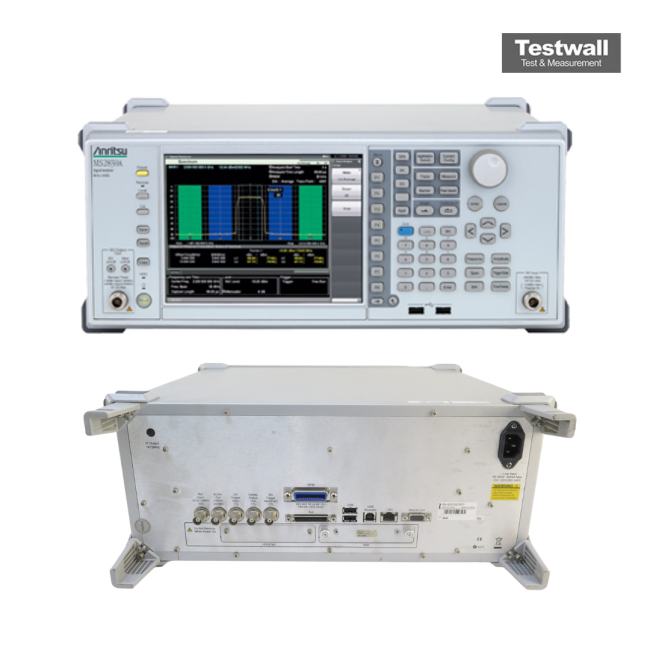

The Anritsu MS2830A-040 Signal Analyzer covers a wide frequency range from 9kHz to 3.6GHz, offering fast and accurate signal measurements with high dynamic range and low phase noise. It supports vector signal analysis, real-time spectrum analysis, and wide bandwidth capture, making it ideal for a broad range of RF applications.
This analyzer is particularly suitable for RF development, production line testing, and field applications, delivering precise signal characterization and evaluation.
Testwall can supply the used Anritsu MS2830A-040, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2830A-040.
