Anritsu

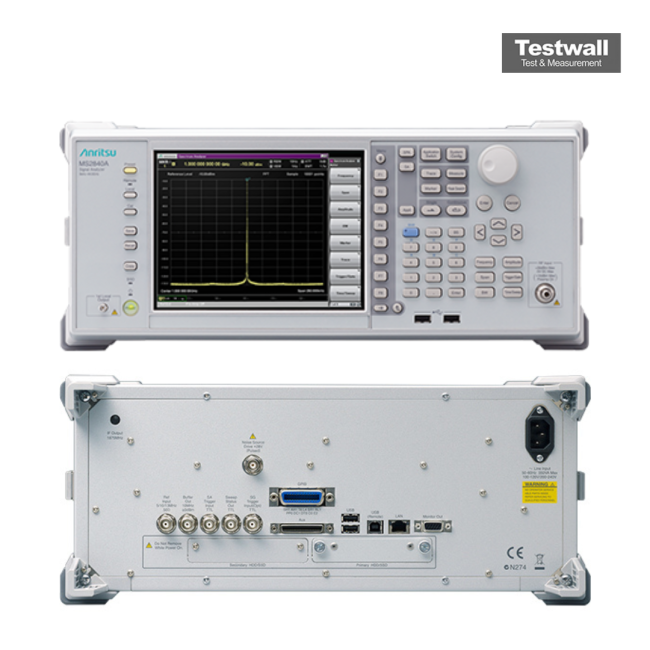

Anritsu MS2840A
9kHz To 3.6, 6.0, 26.5, Or 44.5GHz Signal Analyzer
9 kHz to 26.5 GHz (with optional extensions up to 44.5 GHz) Frequency Range
-108 dBc/Hz at 1 GHz carrier, 10 kHz offset Phase Noise
-163 dBm/Hz (typical) at 1 GHz with preamplifier enabled Displayed Average Noise Level (DANL)
Up to 1 GHz (with optional wideband analysis hardware) Analysis Bandwidth
Greater than 100 dB (TOI + DANL) Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 26.5 GHz (with optional extensions up to 44.5 GHz) |
| Phase Noise | -108 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical) at 1 GHz with preamplifier enabled |
| Analysis Bandwidth | Up to 1 GHz (with optional wideband analysis hardware) |
| Dynamic Range | Greater than 100 dB (TOI + DANL) |
| Amplitude Accuracy | ±0.3 dB (typical) total absolute amplitude accuracy |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1-3 sequence steps) |
| Input Impedance | 50 Ω (standard); 75 Ω optional with adapter |
| Maximum Input Power | +30 dBm (average), +50 V DC (maximum) |
| Signal Analyzer Functions | Spectrum Analyzer, Signal Analyzer, Analog Modulation Analysis, Vector Signal Analysis (VSA), and optional Noise Figure Measurement |
Anritsu MS2840A 9kHz To 3.6, 6.0, 26.5, Or 44.5GHz Signal Analyzer Options:
- MS2840A - 001 - Rubidium Reference Oscillator
- MS2840A - 002 - High Stability Reference Oscillator
- MS2840A - 005 - Analysis Bandwidth Extension To 31.25MHZ
- MS2840A - 006 - Analysis Bandwidth 10MHZ
- MS2840A - 008 - Preamplifier
- MS2840A - 010 - Phase Noise Measurement Function
- MS2840A - 011 - 2Ndary Ssd
- MS2840A - 016 - Precompliance Emi Function
- MS2840A - 017 - Noise Figure Measurement Function
- MS2840A - 020 - 3.6 GHZ Vector Signal Generator
- MS2840A - 021 - 6 GHZ Vector Signal Generator
- MS2840A - 022 - Low Power Extension For Vector Signal Generator
- MS2840A - 026 - Ber Measurement Function
- MS2840A - 027 - Arb Memory Upgrade 256 Msa For Vector Signal Genera
- MS2840A - 028 - Awgn
- MS2840A - 029 - Analog Function Extension For Vector Signal Generator
- MS2840A - 037 - Rubidium Reference Oscillator
- MS2840A - 040 - 9KHZ To 3.6GHZ Frequency Range
- MS2840A - 041 - 9KHZ To 6GHZ Frequency Range
- MS2840A - 051 - Noise Floor Reduction
- MS2840A - 066 - Low Phase Noise Performance
- MS2840A - 077 - Analysis Bandwidth Extension To 62.5 MHZ
- MS2840A - 078 - Analysis Bandwidth Extension To 125 MHZ
- MS2840A - 088 - 3.6 GHZ Analog Signal Generator
- MS2840A - 101 - Rubidium Reference Oscillator
- MS2840A - 102 - High Stability Reference Oscillator
- MS2840A - 108 - Preamplifier
- MS2840A - 110 - Phase Noise Measurement Function
- MS2840A - 111 - 2Ndary Ssd
- MS2840A - 116 - Precompliance Emi Function
- MS2840A - 117 - Noise Figure Measurement Function
- MS2840A - 120 - 3.6 GHZ Vector Signal Generator
- MS2840A - 121 - 6 GHZ Vector Signal Generator
- MS2840A - 122 - Low Power Extension For Vector Signal Generator
- MS2840A - 126 - Ber Measurement Function
- MS2840A - 127 - Arb Memory Upgrade 256 Msa For Vector Signal Generator
- MS2840A - 128 - Awgn
- MS2840A - 129 - Analog Function Extension For Vector Signal Generator
- MS2840A - 137 - Rubidium Reference Oscillator
- MS2840A - 151 - Noise Floor Reduction
- MS2840A - 166 - Low Phase Noise Performance
- MS2840A - 177 - Analysis Bandwidth Extension To 62.5 MHZ
- MS2840A - 178 - Analysis Bandwidth Extension To 125 MHZ
- MS2840A - 182 - Cpu/Windows10 Upgrade
- MS2840A - 188 - 3.6 GHZ Analog Signal Generator
- MS2840A - 189 - Vector Function Extension For Analog Signal Generator
- MS2840A - 282 - Cpu/Windows10 Upgrade
- MS2840A - MX269017A - Vector Modulation Analysis Software
- MS2840A - MX269017A-001 - Apsk Analysis
- MS2840A - MX269017A-011 - Higher-Order Qam Analysis
- MS2840A - MX269018A - Analog Measurement Software
- MS2840A - MX269902A - Tdma Iqproducer
- MS2840A - MX269904A - Multi-Carrier Iqproducer
| Model | MS2840A |
|---|
The Anritsu MS2840A signal analyzer spans 9 kHz to selectable tops of 3.6, 6.0, 26.5, or 44.5 GHz, featuring a stable architecture optimized for both lab and field measurements across its full sweep range.
It performs fast, accurate spectral and modulation analysis of continuous and pulsed signals, with adjustable settings for efficient data capture and detailed signal characterization.
Testwall can supply the used Anritsu MS2840A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2840A.
