Anritsu MS46122B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 20 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Measurement Speed | Up to 4 µs per point |
| Trace Noise | Less than 0.004 dB RMS |
| Display | 10.1-inch Color Touchscreen LCD |
| Connector Type | 3.5 mm (f) Test Port Connectors |
| Interface/Connectivity | USB, LAN (Ethernet), GPIB (optional) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 160 W maximum |
Anritsu MS46322B Options:
- MS46322B - 010 - 1 MHz to 8 GHz, type N(f) ports
- MS46322B - 020 - 1 MHz to 20 GHz, type Ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
- MS46322B - 043 - 1 MHz to 43.5 GHz, type Ruggedized Extended-K™(m) ports (compatible with standard K (2.92 mm), 3.5 mm and SMA connectors)
- MS46322B - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46322B - 002 - Time Domain with Time Gating
- MS46322B - 024 - Universal Fixture Extraction
- MS46322B - 097 - Accredited Calibration, with data
- MS46322B - 098 - Standard Calibration, ISO 17025 compliant, without data
- MS46322B - 099 - Premium Calibration, ISO 17025 compliant, with data
| Model | MS46122B |
|---|

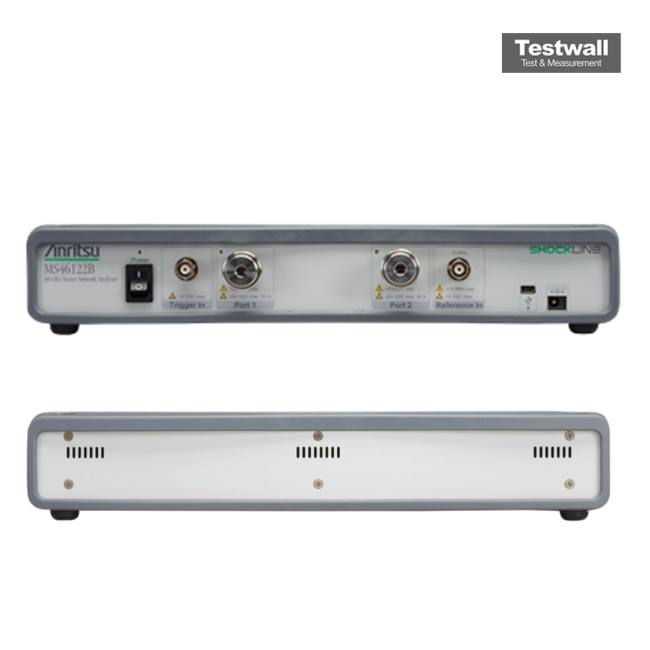

The Anritsu MS46122B Compact USB Vector Network Analyzer series offers models with frequency ranges from 1 MHz to 8, 20, and 43.5 GHz. Powered by patented ShockLine VNA-on-chip technology, it streamlines internal architecture, ensuring cost efficiency, high accuracy, and reliable measurement repeatability across RF and microwave applications.
Packaged in a 1U compact chassis, the Anritsu MS46122B connects via USB to a PC and uses an external power supply. With no onboard memory, it is ideal for secure environments, providing portability and efficient passive device testing.
Testwall can supply the used Anritsu MS46122B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46122B.
