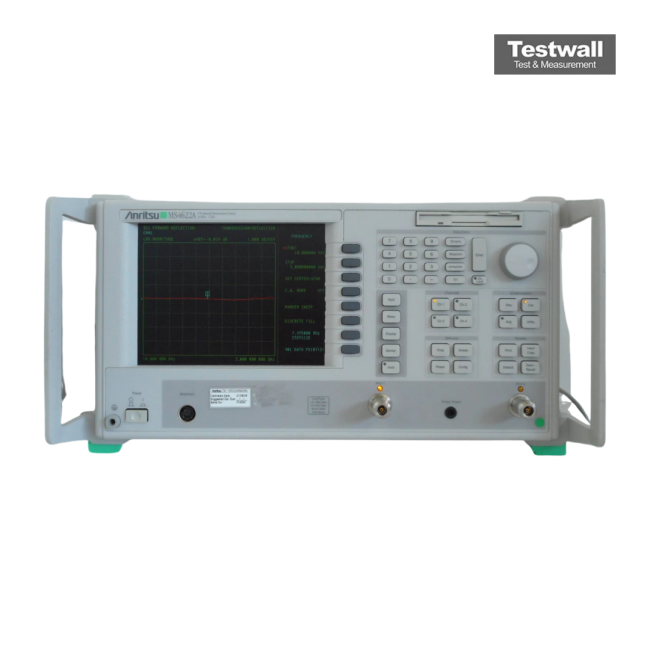

Anritsu MS4622A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| IF Bandwidth | 10 Hz to 30 kHz |
| Number of Data Points | Up to 1601 points per sweep |
| Connector Type | N-Type (50 Ohm) |
| Display | 8.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, RS-232, and Ethernet (LAN) |
Anritsu MS4622A Options:
- MS4622A - MS4600/1 - Rack Mount Kit with Slides
- MS4622A - MS4600/1A - Rack Mount Kit with Handles
- MS4622A - MS4600/2 - Time (Distance) Domain
- MS4622A - MS4600/7 - T/R Step Attenuator
- MS4622A - MS4600/8 - Harmonic Measurements
- MS4622A - MS4600/11NM - Replaces N female with N male Test Port Adapters
- MS4622A - MS4600/11S - Replaces N female with 3.5mm male Test Port Adapters
- MS4622A - MS4600/11SF - Replaces N female with 3.5mm female Test Port Adapters
- MS4622A - MS4600/11A - Replaces N female with GPC-7 male Test Port Adapters
- MS4622A - MS4600/13 - Intermodulation Distortion Measurements
- MS4622A - MS4600/98 - Z540/Guide 25 Calibration
- MS4622A - MS4600/99 - Premium Calibration
- MS4622A - ES31 - 3 Year On-Site Repair
- MS4622A - ES37 - 3 Year On-Site Standard Calibration
- MS4622A - ES38 - 3 Year On-Site Premium Calibration
- MS4622A - ES32 - 3 Year Return-to-Service Center Standard Calibration
- MS4622A - ES34 - 3 Year Return-to-Service Center Premium Calibration
- MS4622A - ES50 - 5 Year Return-to-Service Center Repair Only
- MS4622A - ES52 - 5 Year Return-to-Service Center Standard Calibration
- MS4622A - ES54 - 5 Year Return-to-Service Center Premium Calibration
- MS4622A - ES55 - 5 Year Return-to-Service Center Repair plus Standard Calibration
- MS4622A - ES56 - 5 Year Return-to-Service Center Repair plus Premium Calibration
| Model | MS4622A |
|---|
The Anritsu MS4622A is a two-port S-parameter vector network measurement system operating from 10 MHz to 3 GHz. It integrates a flexible source with an ultra-linear receiver, enabling precision testing of RF components across frequency, time, and power domains. Its architecture supports passive, active, mixer, and amplifier device evaluation with outstanding accuracy.
With high dynamic range (~125 dB terminated), two-port transmission and reflection capabilities, and auto-calibration support, the Anritsu MS4622A ensures consistent and reliable network analysis. Expandable options, such as a second source or third port, offer flexibility for advanced measurement setups.
Testwall can supply the used Anritsu MS4622A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4622A.
