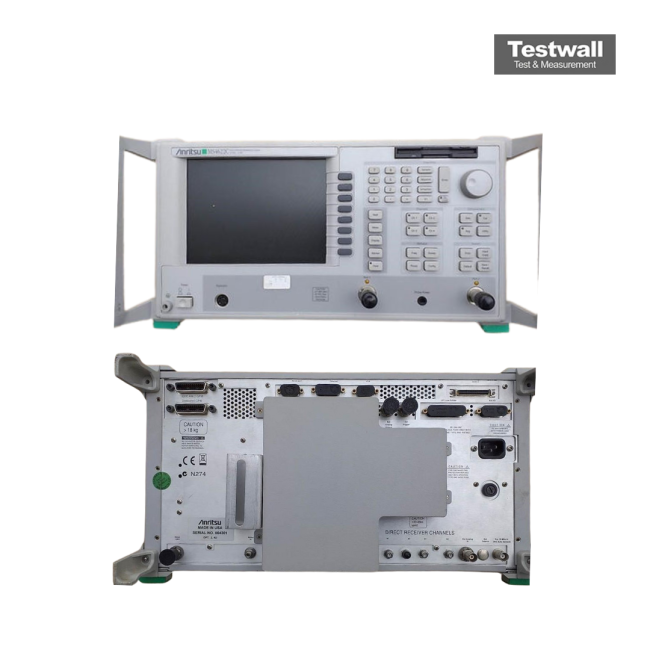

Anritsu MS4622C
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Greater than 100 dB |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Impedance | 50 Ohm |
| Connector Type | N-Type (female) |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, USB, and Ethernet |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MS4622C Options:
- MS4622C - MS4600/1 - Rack Mount Kit with Slides
- MS4622C - MS4600/1A - Rack Mount Kit with Handles
- MS4622C - MS4600/2 - Time (Distance) Domain
- MS4622C - MS4600/3C - 3 GHz 2nd Source for MS4622C
- MS4622C - MS4600/4D - 3 GHz Noise Figure (50 MHz to 3000 MHz)
- MS4622C - MS4600/4E - 6 GHz Noise Figure (50 MHz to 6000 MHz)
- MS4622C - MS4600/5 - Frequency Translating Group Delay (FTGD)
- MS4622C - MS4600/6 - Third Test Port Without Second Internal Source
- MS4622C - MS4600/8 - Harmonic Measurements
- MS4622C - MS4600/11NM - Replaces N female with N male Test Port Adapters
- MS4622C - MS4600/11S - Replaces N female with 3.5mm male Test Port Adapters
- MS4622C - MS4600/11SF - Replaces N female with 3.5mm female Test Port Adapters
- MS4622C - MS4600/11A - Replaces N female with GPC-7 male Test Port Adapters
- MS4622C - MS4600/13 - Intermodulation Distortion Measurements
- MS4622C - MS4600/24 - Processing Upgrade
- MS4622C - MS4600/98 - Z540/Guide 25 Calibration
- MS4622C - MS4600/99 - Premium Calibration
| Model | MS4622C |
|---|
The Anritsu MS4622C extends the MS4622A with an internal secondary source up to 3 GHz, a third test port, and step attenuator functionality. It covers 10 MHz to 3 GHz with dual sources, enabling advanced multi‑port analysis and broad RF testing versatility. Features include AutoCal support, precision receiver tracking, and high flexibility for amplifier, mixer, and multi‑channel evaluations.
With three ports, extended dynamic range, and versatile configurations, the MS4622C is designed for demanding RF device measurements, ensuring accuracy across various test scenarios.
Testwall can supply the used Anritsu MS4622C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4622C.
