Anritsu

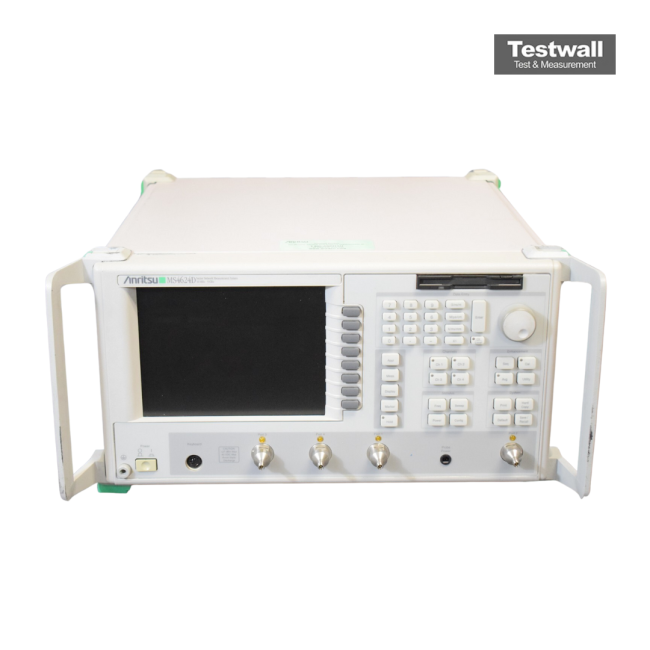

Anritsu MS4624D
300 kHz to 4 GHz Frequency Range
4-Port Vector Network Analyzer Number of Ports
Up to 100 dB Dynamic Range
-60 dBm to +3 dBm Output Power Range
S-parameters (S11, S12, S21, S22, and full 4-port S-parameters), impedance, admittance, group delay Measurement Parameters
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 4 GHz |
| Number of Ports | 4-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-parameters (S11, S12, S21, S22, and full 4-port S-parameters), impedance, admittance, group delay |
| Connector Type | Type-N (50 Ohm) |
| System Impedance | 50 Ohm |
| Display | 10.4-inch color LCD touchscreen display |
| Interface/Connectivity | GPIB, USB, Ethernet (LAN) |
| Calibration Methods | SOLT, TRL, LRL, LRM, and other standard calibration methods supported |
Anritsu MS4624D Options:
- MS4624D - MS4600/1 - Rack Mount Kit with Slides
- MS4624D - MS4600/1A - Rack Mount Kit with Handles
- MS4624D - MS4600/2 - Time (Distance) Domain
- MS4624D - MS4600/4F - 3 GHz Noise Figure (50 MHz to 3000 MHz), for MS4624D
- MS4624D - MS4600/4G - 6 GHz Noise Figure (50 MHz to 6000 MHz), for MS4624D
- MS4624D - MS4600/5 - Frequency Translating Group Delay (FTGD)
- MS4624D - MS4600/8 - Harmonic Measurements
- MS4624D - MS4600/11NM - Replaces N female with N male Test Port Adapters
- MS4624D - MS4600/11S - Replaces N female with 3.5mm male Test Port Adapters
- MS4624D - MS4600/11SF - Replaces N female with 3.5mm female Test Port Adapters
- MS4624D - MS4600/11A - Replaces N female with GPC-7 male Test Port Adapters
- MS4624D - MS4600/13 - Intermodulation Distortion Measurements
- MS4624D - MS4600/24 - Processing Upgrade (standard in MS462xD)
- MS4624D - MS4600/98 - Z540/Guide 25 Calibration
- MS4624D - MS4600/99 - Premium Calibration
- MS4624D - ES31 - 3 Year On-Site Repair
- MS4624D - ES37 - 3 Year On-Site Standard Calibration
- MS4624D - ES38 - 3 Year On-Site Premium Calibration
- MS4624D - ES32 - 3 Year Return-to-Service Center Standard Calibration
- MS4624D - ES34 - 3 Year Return-to-Service Center Premium Calibration
- MS4624D - ES50 - 5 Year Return-to-Service Center Repair Only
- MS4624D - ES52 - 5 Year Return-to-Service Center Standard Calibration
- MS4624D - ES54 - 5 Year Return-to-Service Center Premium Calibration
- MS4624D - ES55 - 5 Year Return-to-Service Center Repair plus Standard Calibration
- MS4624D - ES56 - 5 Year Return-to-Service Center Repair plus Premium Calibration
| Model | MS4624D |
|---|
The Anritsu MS4624D is a 9 GHz vector network analyzer offering dual internal sources and an integrated third port with step attenuation. Its enhanced internal electronics and calibration upgrades deliver superior accuracy for RF device validation.
Designed for mixers, amplifiers, and multi‑channel systems, it provides precise multi‑port measurements with AutoCal assurance and expandable features such as time‑domain and noise figure analysis.
Testwall can supply the used Anritsu MS4624D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4624D.
