Anritsu MS46322A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | 130 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | 4 µs per point (minimum) |
| System Performance (Directivity) | 46 dB typical |
| IF Bandwidth Range | 1 Hz to 500 kHz |
| Connector Type | Type-N (f), 50 Ohm |
| Number of Data Points | 2 to 100,001 points per sweep |
| Model | MS46322A |
|---|

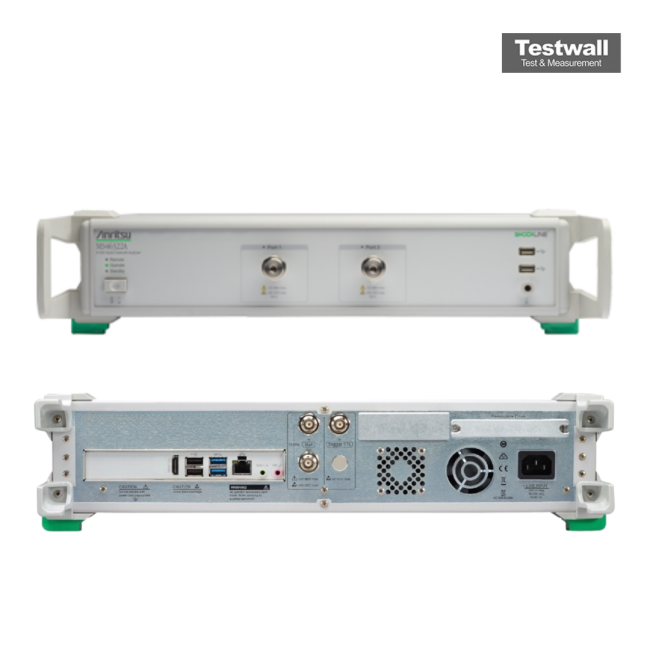

The Anritsu MS46322A Compact USB Vector Network Analyzer provides a 1 MHz to 43.5 GHz frequency span with up to 125 dB dynamic range, 0.02 dB amplitude accuracy, and 0.1° phase resolution. Featuring USB 3.0 connectivity, sweep rates under 3 ms per point across 801 sweep points, and compatibility with Windows and Linux via Anritsu Master software, this portable VNA enables precise S-parameter measurements. Its lightweight, compact design and port extension capability make it ideal for RF, microwave, and antenna characterization.
Engineered for field and bench use, the MS46322A supports swept and stepped measurements with automated calibration routines, advanced data logging, and customizable test sequences, enabling streamlined analysis of cables, amplifiers, and antenna systems.
Testwall can supply the used Anritsu MS46322A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46322A.
