Anritsu MS4647A
| Attribute | Value |
|---|---|
| Frequency Range | 70 kHz to 70 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 103 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS typical |
| Measurement Speed | Up to 40,000 points per second |
| Connector Type | 1.85 mm (V-connector) |
| IF Bandwidth | 1 Hz to 1 MHz |
| Number of Data Points | 2 to 100,001 points per sweep |
| Operating Temperature | 0°C to 55°C |
Anritsu MS4647A Options:
- MS4647A - 001 - Rack Mount, Adds handles and removes feet for shelf-mounting into a 19" universal rack
- MS4647A - 002 - Time Domain
- MS4647A - 004 - Additional Solid State Drive (SSD), Serial-ATA, With OS and VectorStar Application Software, quickly field pluggable at rear panel
- MS4647A - 007 - Receiver Offset
- MS4647A - 041 - Noise Figure, requires Option 051, 061, or 062
- MS4647A - 051 - Direct Access Loops, not available with Options 061 or 062
- MS4647A - 061 - Active Measurements Suite, With 2 Step Attenuators
- MS4647A - 062 - Active Measurements Suite, With 4 Step Attenuators
- MS4647A - 070 - 70 kHz Low-End Frequency Extension
- MS4647A - 080 - Modular Broadband/Millimeter-Wave Capability, for MS4647A VNAs without Option 051, 061, or 062
- MS4647A - 081 - Modular Broadband/Millimeter-Wave Capability, for MS4647A VNAs with Option 051, 061, or 062
- MS4640A - 082 - Millimeter-Wave capability for MS4647A VNAs not equipped with Option 051, 061, or 062
- MS4640A - 083 - Millimeter-Wave capability for MS4647A VNAs equipped with Option 051, 061, or 062
- MS4640A - 098 - Z540/Guide 25 Calibration, No Data
- MS4640A - 099 - Premium Calibration, With Data
| Model | MS4647A |
|---|

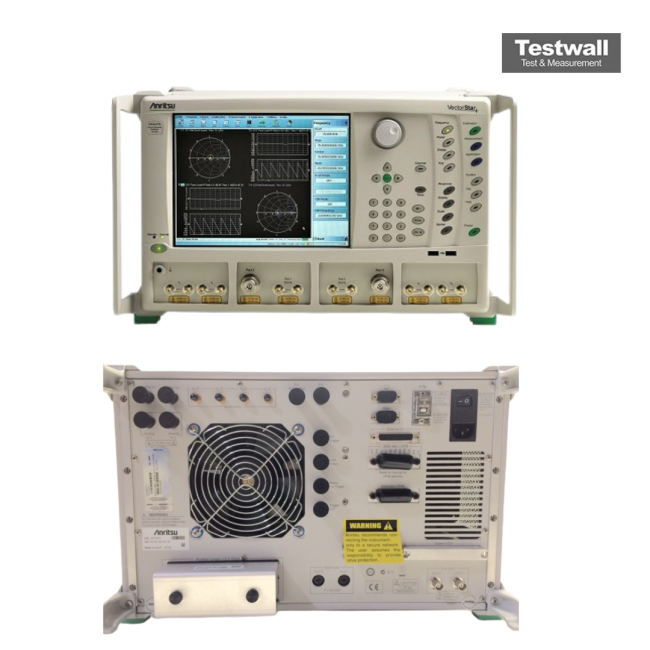

The Anritsu MS4647A Vector Network Analyzer offers a frequency range of 10 MHz to 70 GHz with exceptional precision. It features a built-in source, test set, and analyzer, providing real-time measurements on a responsive touchscreen or external monitor. With up to 140 dB dynamic range and +13 dBm output power, it ensures accurate performance for advanced RF testing.
This VNA supports flexible measurement, screen capture saving, and easy data export, making it ideal for research, production, and development environments.
Testwall can supply the used Anritsu MS4647A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4647A.
